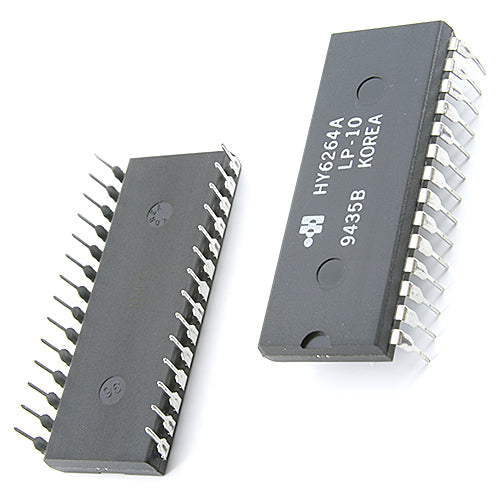

HY6264ALP-10 IC

The HY6264A is a high-speed, low power and 8,192×8-bits CMOS static RAM fabricated using Hyundai’s high performance twin tub CMOS process technology.

The HY6264A has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0 volt.

Using the CMOS technology, supply voltage from 2.0 to 5.5 volt has little effect on supply current in the data retention mode.

Reducing the supply voltage to minimize current drain is unnecessary for the HY6264A Series.

FEATURES

· Fully static operation and Tri-state outputs

· TTL compatible inputs and outputs

· Low power consumption

· Battery backup(L/LL-part) -2.0V(min.) data retention

· Standard pin configuration -28 pin 600 mil PDIP

SPECIFICATIONS

Package Description: 0.600 INCH, PLASTIC, DIP-28

REACH Compliant Yes

Status Discontinued

Sub Category SRAMs

Access Time-Max 100.0 ns

I/O Type COMMON

JESD-30 Code R-PDIP-T28

JESD-609 Code e0

Memory Density 65536.0 bit

Memory IC Type STANDARD SRAM

Memory Width 8

Number of Functions 1

Number of Ports 1

Number of Terminals 28

Number of Words 8192.0 words

Number of Words Code 8K

Operating Mode ASYNCHRONOUS

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Organization 8KX8

Output Characteristics 3-STATE

Output Enable YES

Package Body Material PLASTIC/EPOXY

Package Equivalence Code DIP28,.6

Package Shape RECTANGULAR

Package Style IN-LINE

Parallel/Serial PARALLEL

Power Supplies (V) 5

Qualification Status Not Qualified

Seated Height-Max 4.826 mm

Standby Current-Max 5.0E-5 Amp

Standby Voltage-Min 2.0 V

Supply Current-Max 0.05 Amp

Supply Voltage-Nom (Vsup) 5.0 V

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Length 37.0 mm

Width 15.24 mm
