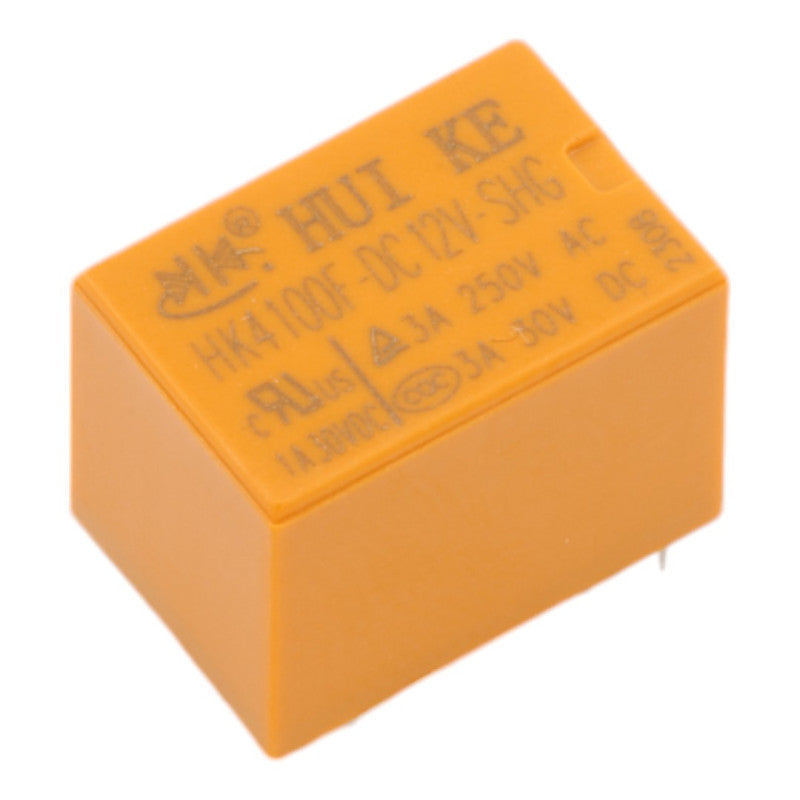

HK4001F 12v 3A Relay

HK4100F SUBMINIATURE POWER RELAY

Main Features

Low price

One set changeover (1 normally open, 1 normally closed)

PCB mounting type

Sealed and half-sealed two types available

CONTACT DATA

Contact Form: 1C (SPDT) / 1A (SPST-NO) / 1B (SPST-NC)

Contact Material: Silver Alloy

Contact Ratings: 3A 250VAC / 3A 30VDC

Max Switching Voltage: 300VAC / 60VDC

Max Switching Current: 3A

Max Switching Power: 750VA / 90W

Contact Resistance: 100mΩ (at 1A 6VDC)

Electrical Life: 1×10⁵ operations (300 ops/min)

Mechanical Life: 1×10⁷ operations (3000 ops/

GENERAL DATA

Insulation Resistance: 100MΩ at 500VDC

Dielectric Strength:

Between coil and contacts: 1000VAC 1 min

Between open contacts: 500VAC 1 min

Operate Time: Max. 10ms

Release Time: Max. 10ms

Temperature Range: -25°C to +70°C

Shock Resistance:

Functional: 98m/s² (10g)

Destructive: 980m/s² (100g)

Vibration Resistance: 10 to 55Hz, 1.5mm DA

Humidity: 35% to 85% RH

Weight: Approx. 3.5g

Safety Standards: CUL, TUV, CQC

COIL DATA (at 20°C ±10%)

Nominal Voltage (VDC) : 12v

Coil Resistance (Ω) : 960

Power (W): 0.15

 Max Operate Voltage (VDC): 9.0

Min Release Voltage (VDC) : 1.2

Max Applicable Voltage (VDC): 15.

Note: Coil power is based on 0.15W. Operate voltage is 80% of nominal rated voltage.
