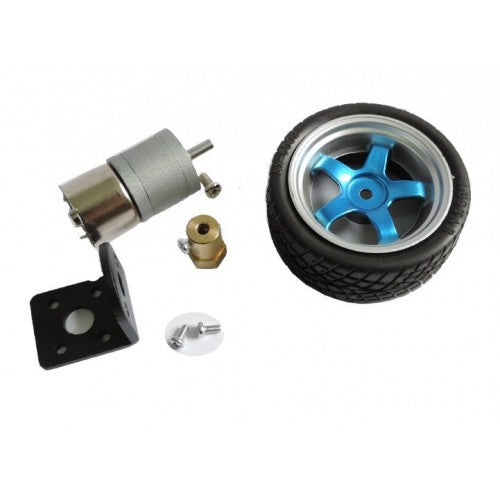

geared motor+wheel+coupling

This is a DC gear motor + wheel + coupling + fixed mount Smart car Combination suit. It has a small volume,big torsion, all metal gear DC Motor. It is lightweight, has high torque and low RPM with excellent stall characteristics, can climb hills easily. It also has a wheel mounted on the motor’s output shaft. It has a mounting bracket which makes it easy to install on various appliances and toys such as Boat, Car, Electric Bicycle, Fan,Home Appliance.

Technical Specification

• Continuous Current(A): 80-200MA, according to the speed
• Commutation: Brush
• Model Number: N20 Motor
• Construction: Permanent Magnet
• Efficiency: IE 1
• Type: Gear Motor
• Torque: 0.07-2kg.cm,different speed has different torque
• Protect Feature: Totally Enclosed
• Output Power: Standard
• Speed(RPM): 15-4000rpm, choose one speed.
• Voltage(V): 3v 6v 12v
• Output shaft: 4mm
