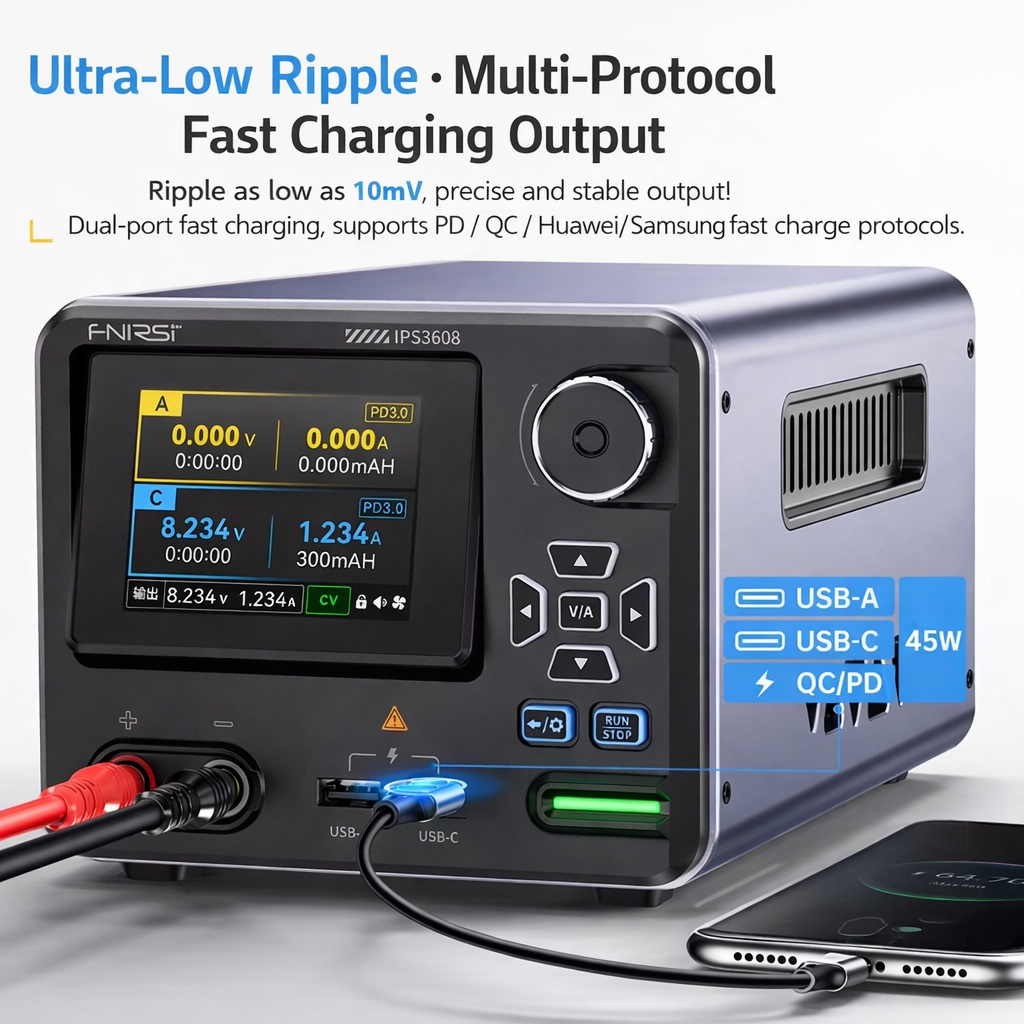

FNIRSI Digital-Control Adjustable DC Regulated Power Supply IPS3608

 Product Specifications –

FNIRSI IPS3608 Input
Voltage Range: 100–240V AC (50/60Hz)

Setting Resolution
Voltage Resolution: 0.01V
Current Resolution: 0.001A

 Measurement Accuracy
Output Voltage Accuracy: ± (0.3% + 3 digits)
Output Current Accuracy: ± (0.15% + 5 digits)

 Operating Environment
Temperature: -10°C to 40°C
Humidity: 0%–75% RH

 Protection Features
Over-voltage protection
Over-current protection
Over-power protection
Over-temperature protection
Under-voltage protection
Input reverse polarity protection
Output anti-backflow protection
Short-circuit protection

Output Specifications:
Output Voltage: DC 0–36V
Output Current: 0–8A
Max Power: 285W

 Load Regulation:
± (0.2% + 2 digits)

 Accuracy Calculation Example
One digit equals the minimum resolution.

At 5V output:
Error = ± (5 × 0.3% + 3 × 0.01)
= 5V ± 0.045V
