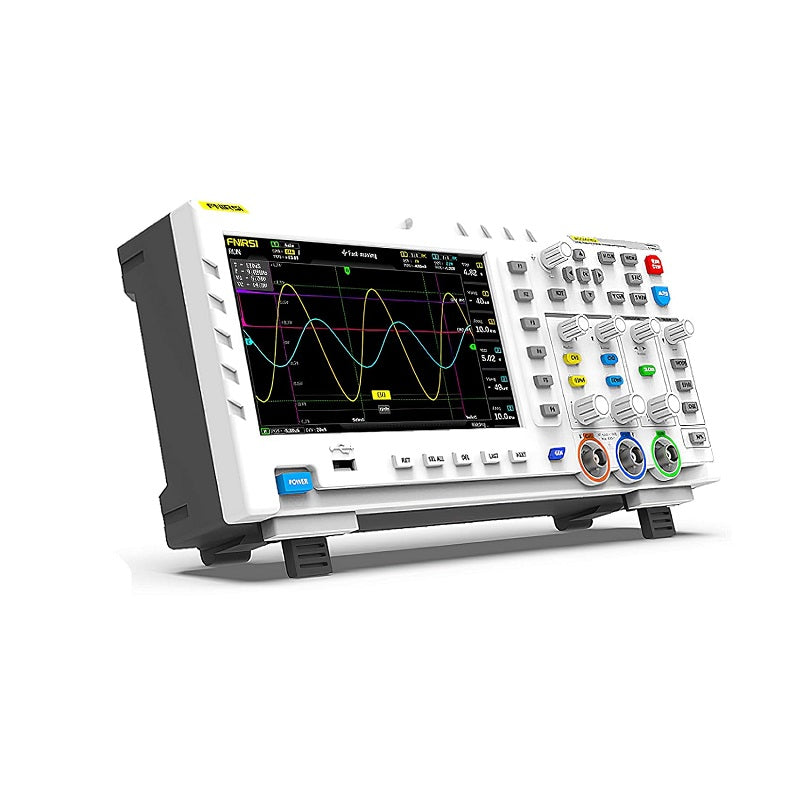

FNIRSI 1014D 100MHz Oscilloscope

The FNIRSI 1014D is a versatile digital oscilloscope designed for both professional engineers and electronics enthusiasts. This 2-channel oscilloscope features a large 7-inch TFT display, providing clear and detailed waveforms for easy analysis. With a bandwidth of 100 MHz and a real-time sampling rate of 1 GSa/s, the FNIRSI 1014D delivers accurate and reliable measurements for a wide range of electronic applications. Its compact design and user-friendly interface make it an ideal tool for troubleshooting circuits, testing signals, and educational purposes.

Technical Specifications

• Channels: 2
• Bandwidth: 100 MHz
• Sampling Rate: 1 GSa/s
• Display: 7-inch TFT LCD
• Vertical Sensitivity: 10 mV/div to 20 V/div
• Timebase Range: 2 ns/div to 50 s/div
• Memory Depth: 240 kpts
• Input Impedance: 1 MΩ ± 2%
• Max Input Voltage: 400V (PK-PK)
• Trigger Types: Edge, Pulse, Video, Slope, Alternate
• Power Supply: 110V-240V AC, 50Hz/60Hz
• Connectivity: USB port for data storage and firmware updates
• Dimensions: 320mm x 180mm x 90mm
• Weight: 1.5 kg
• Included Accessories: 2 x Probes, USB Cable, Power Adapter, User Manual
