Microscale

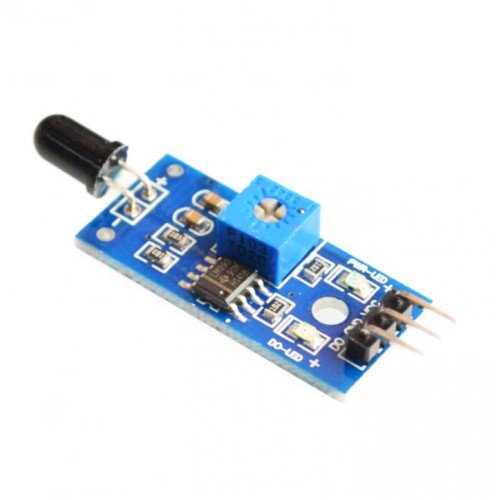

Flame sensor module

Flame sensor module

Regular price ₦800.00 NGN
Regular price Sale price ₦800.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Flame Sensor

This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of of a wavelength 760nm-1100 nm. The detection distance is up to 100 cm.The Flame sensor can output digital or analog signal. When fire burns it emits a small amount of Infra-red light, this light will be received by the Photodiode (IR receiver) on the sensor module. Then we use an Op-Amp to check for change in voltage across the IR Receiver, so that if a fire is detected the output pin (DO) will give 5V(HIGH) and if there is no fire the output pin will be 0V(LOW). It can be used as a flame alarm or in fire fighting robots.

Technical Specification

  • LM393 comparator chip
  • Detection Range: 760 nm to 1100 nm
  • Operating Voltage: 3.3 V to 5 V
  • Maximum Output Current: 15 mA
  • Digital Outputs: 0 and 1
  • Detection Angle: about 60 degrees
  • Adjustable sensitivity via potentiometer
  • LED lights indicators: power (red) and digital switching output (green)
  • Fixed bolt holes for easy installation
  • PCB Size: 32 x 14 mm
