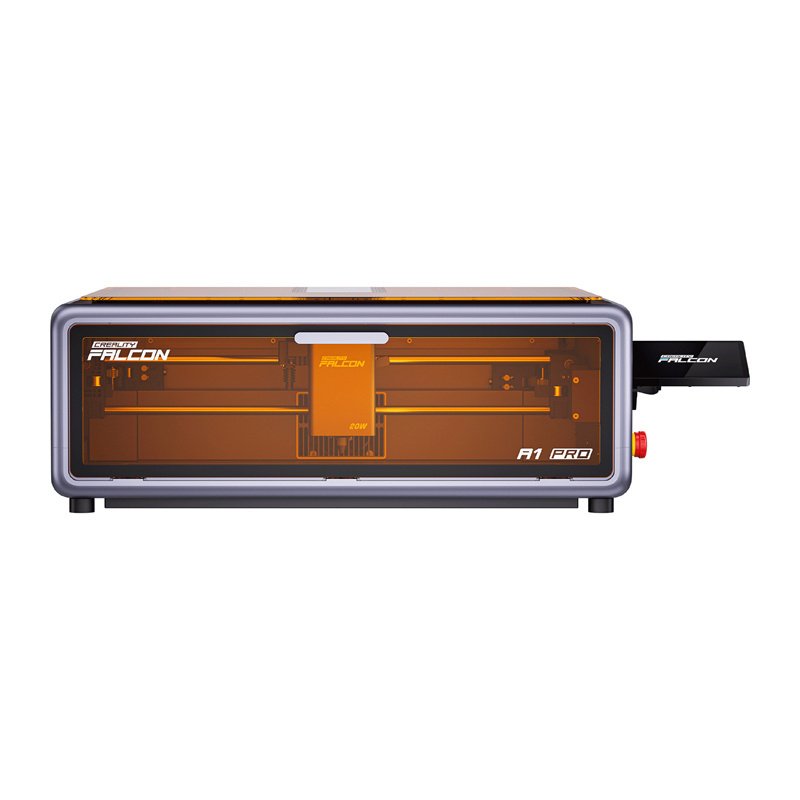

• Creality Falcon A1 Pro 20W enclosed laser engraver
1 1

Creality

Falcon A1 Pro Laser Engraver

Falcon A1 Pro Laser Engraver

₦1,385,083.50 NGN
₦1,385,083.50 NGN
Sale Sold out
Shipping calculated at checkout.

The Creality Falcon A1 Pro is a fully enclosed 20W diode laser engraver and cutter built for the home, classroom, and small workshop. The closed cabinet, Class 1 (FDA) laser-safety rating, built-in exhaust filter, and AI vision camera make it one of the safest and easiest desktop lasers to run — set a job from the touchscreen or the Falcon app and watch it live from the top camera.

Highlights

  • 20W optical power blue-diode module — cuts up to 10 mm basswood or 8 mm black acrylic in a single pass.
  • 358 × 268 mm engraving area at up to 600 mm/s.
  • Fully enclosed, Class 1 (FDA) — safe to run in a room with people; no separate laser goggles needed for normal use.
  • AI vision camera + red-dot auto-focus — place artwork visually on the material and focus in about 3 seconds (< 0.3 mm).
  • Built-in smoke exhaust filter and dual laser-head cooling fans.
  • Touchscreen, Wi-Fi/app (IoT) control, and offline running.
  • Optional 2W infrared module (1064 nm, sold separately) adds metal and dark-plastic marking.

Specifications

Laser module 20W optical, semiconductor (blue diode), 455 ± 5 nm
Optional module 2W infrared, 1064 ± 1 nm (metals & dark plastics) — sold separately
Engraving area 358 × 268 mm
Max engraving speed 600 mm/s
Auto-focus accuracy < 0.3 mm (< 0.012")
Max cut (single pass) 10 mm basswood · 8 mm black acrylic
Machine size 567 × 468 × 211 mm (685 mm deep with screen)
Net weight 16.8 kg
Power 100–240 V~, 50/60 Hz (output DC 24 V 7.5 A)
Camera Top-mounted HD wide-angle AI vision
Exhaust Built-in smoke exhaust filter + head cooling fans
Connectivity Touchscreen · Wi-Fi/app (IoT) · USB
Software Falcon Design Space, LightBurn, LaserGRBL (Windows/macOS)
File formats JPG, PNG, BMP, SVG, DXF
Operating temperature 5–35 °C
Laser safety Class 1 (FDA); certified FDA, CE, RoHS, FCC, PSE

What it engraves & cuts

  • Cut: basswood/plywood, bamboo, cardboard, leather, felt/fabric, dark/black acrylic, thin rubber.
  • Engrave: the above plus coated/anodised metals, slate, glass (marking), and most dark opaque plastics.
  • With the optional 2W IR module: bare metals — gold, silver, brass, aluminium, iron, stainless steel, titanium — and clear/dark plastics.

Good to know before you buy

  • This is a blue-diode laser. Like all blue-diode lasers it cannot cut clear or transparent acrylic (the beam passes straight through) — only dark/opaque acrylic cuts. Clear acrylic needs a CO&sub2; laser.
  • Bare-metal marking needs the optional 2W IR module; the 20W blue module marks only coated/painted metals, not raw metal.
  • Vent the exhaust to outside air (or add a fume purifier) when cutting plastics or MDF.

In the box

  • Falcon A1 Pro machine, power supply, exhaust pipe + hose clamp, silicone tube
  • Multi-level fixed-focus block, test/calibration card, basswood sample
  • Rotary-kit connection cable, Type-A→Type-C cable + USB-A→USB-C adapter
  • Protective lens, anti-static brush, dust-free cloth, tweezers, Allen wrench set, key, user manual

Optional add-ons

  • 2W infrared laser module (metal & dark-plastic marking)
  • Falcon Rotary Kit (cylinders: tumblers, bottles, rings)
  • Falcon AP1 smoke purifier
