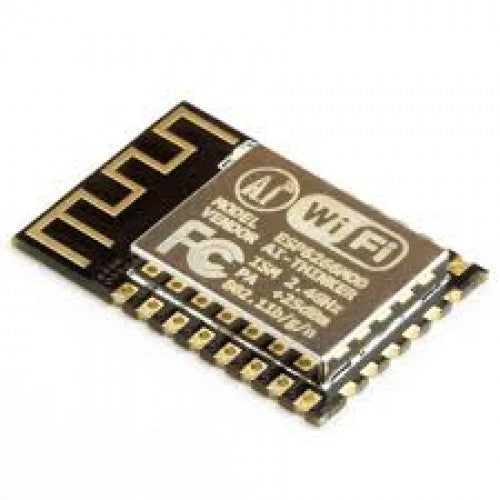

ESP8266 SMT Module - ESP-12E

ESP8266 SMT Module - ESP-12E

Regular price ₦0.00 NGN
Regular price Sale price ₦0.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

ESP8266-12 is an enhanced version ESP8266-12, improve peripheral circuitryincreases impedance matching, the signal output is better, whether it isstable or anti-jamming capability, have been greatly improved! For usersbefore selecting the ESP-12, it does not matter even if the product has beenmade, enhanced version is fully compatible with previous firmware, the pin hasadded six IO ports on the basis of the ESP-12, SPI leads.


  • 802.11 b/g/n
  • Wi-Fi Direct(P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • IntegratedTR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  • Power down leakage currentof <10uA
  • Integrated low power 32-bit CPU could be used as anapplication processor
  • SDIO 1.1 / 2.0, SPI, UART
  • STBC, 1×1MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guardinterval
  • Wake up and transmit packets in < 2ms
  • Standbypower consumption of < 1.0mW (DTIM3
