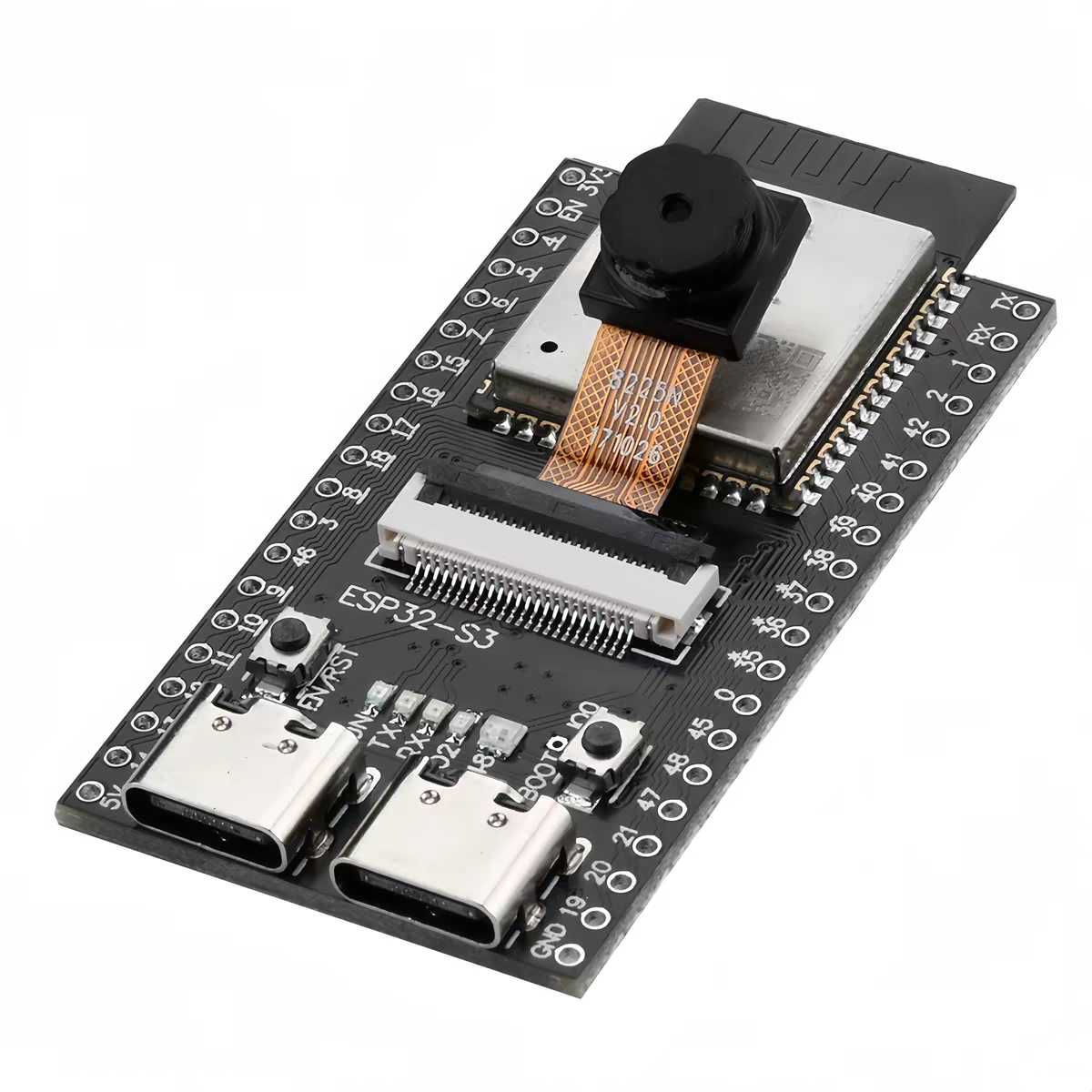

ESP32-S3 N16R8 CAM development board WiFi + Bluetooth module OV2640 camera

ESP32-S3 16R8 Development Board (WiFi + Bluetooth)
Compatible with OV2640 Camera Module

The ESP32-S3 16R8 development board is a powerful, low-power Wi-Fi + Bluetooth SoC designed for IoT, AI, smart devices, robotics, and embedded systems projects. Built with an onboard PCB antenna and rich peripheral interfaces, it delivers high performance with excellent power efficiency.

🔹 Key Features
Xtensa® Dual-Core 32-bit LX7 CPU (Up to 240MHz)
Integrated 2.4GHz Wi-Fi + Bluetooth 5 (LE)
Onboard PCB Antenna
Compatible with OV2640 Camera
Advanced hardware security features
Supports low-power modes for energy-efficient designs

🔹 Memory Specifications
384KB ROM
512KB SRAM
16KB RTC SRAM
8MB PSRAM
Operating Voltage: 3.0V – 3.6V

🔹 GPIO & Analog
45+ GPIO Pins
2 × 12-bit ADC (Up to 20 channels)

🔹 Communication Interfaces
2 × I2C
2 × I2S
4 × SPI
3 × UART
1 × USB OTG
1 × 8-bit LCD Interface

🔹 Wi-Fi Features
IEEE 802.11 b/g/n (2.4GHz)
20MHz & 40MHz bandwidth support
1T1R mode (Up to 150 Mbps)
Station Mode / SoftAP Mode / Station + SoftAP
Frame aggregation (A-MPDU, A-MSDU)
Antenna diversity support
Supports external power amplifier

🔹 Bluetooth Features
Bluetooth 5 LE
Bluetooth Mesh
High power mode (Up to 20 dBm)
Data rates: 125 Kbps / 500 Kbps / 1 Mbps / 2 Mbps

🔹 Operating Temperature
-40°C to +65°C

🔹 Ideal For:
✔ IoT Projects
✔ Smart Home Systems
✔ AI Camera Projects
✔ Robotics
✔ Industrial Monitoring
✔ Embedded System Development.
