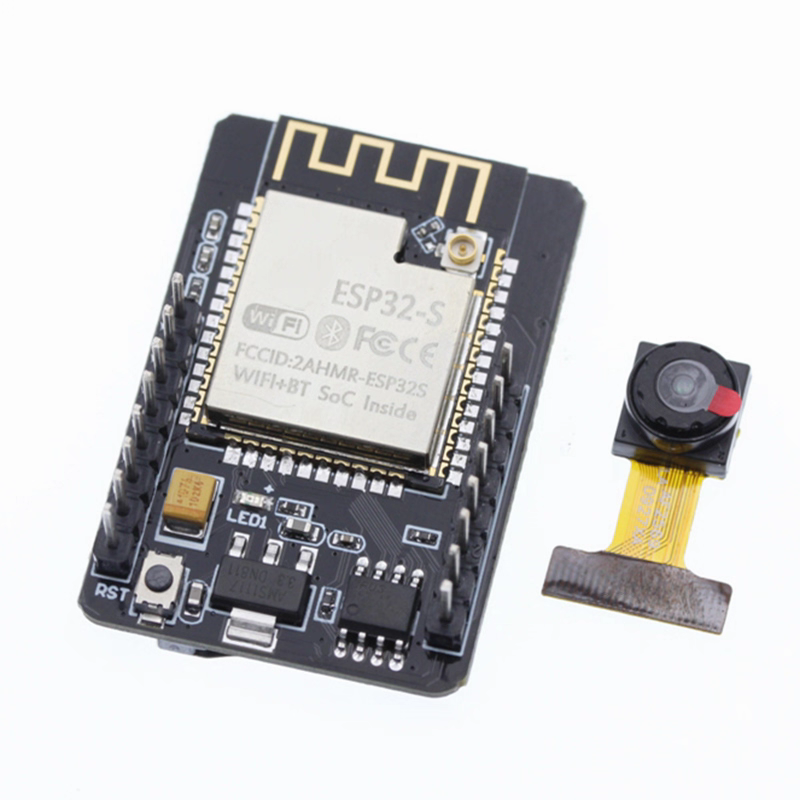

ESP32 Camera Board

ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV3660

Features:
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module

Low-power dual-core 32-bit CPU for application processors

Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as: UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras with built-in flash

Support for images WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss One-click distribution network

Support for serial local upgrade and remote firmware upgrade (FOTA)

Description:

The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 2740.54.5mm, with deep sleep current and a minimum of 6mA.

ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

Note:

This product contains the OV3660 Camera Module.

Package Included:

1 x ESP32-CAM Module

1 x Camera Module OV3660
