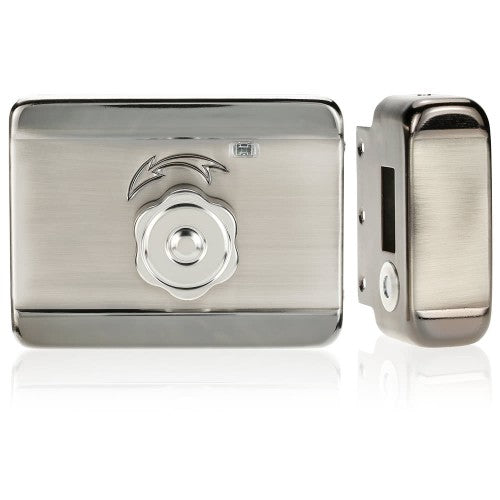

Electro-Mechanical Door Lock

These electro-mechanical locks can be controlled by a variety of electrical impulse generating equipment. For example access control systems, keypad, card reader and timer. The locks have sensors with the following monitoring outputs: position of bolt, handle down, request to exit, door status. The locks can always be opened mechanically through cylinder or thumbturn. Electromechanical locks can also be used in fire rated doors where there are demands of fast locking and operation.This Electromechanical locks can be used on both light and heavy interior doors, exterior doors and also on fire protective doors.

Technical Specification

• Lock Size: 130X106X40 mm
• Input Voltage: DC12V
• Working current: 380mA
• Weight: 1.1Kg
• Application Door: Metal doors, wooden doors, fireproof doors
• Finished: Nickel Plated
