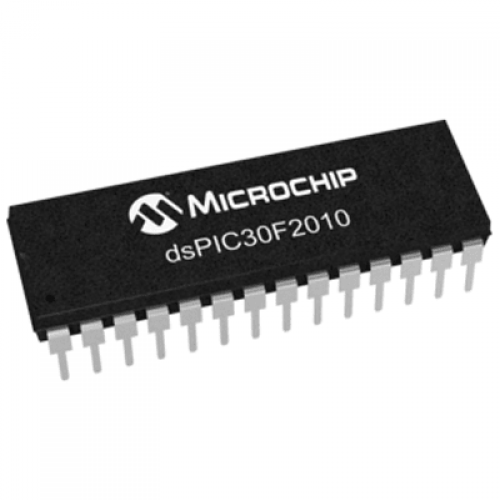

dsPIC30F2010

dsPIC30F2010 Controller is ideal for motor controller applications. Utilising the powerful, high-performance Microchip dsPIC30F2010 microcontroller, this microcontroller features a high speed core optimized to perform complex calculations quickly. The microcontroller includes 12kB internal flash memory and a wide range of timers together with a number of PWM modules for adjustable motor speed control.

The dsPIC30F2010 Microcontroller also includes a 5-channel 10-bit A/D convertor with fast response time together with support for SPI and I²C communication. In-circuit programming is available for both the Futurlec PIC Programmer as well as the Microchip ICD2 unit. Programs can also checked and debugged with the Microchip In-Circuit Debugging tool, the ICD2. The microcontroller also includes RS232 support, for direct connection and data transfer with a laptop or computer.

Technical Specification

• Architecture: 16-bit
• Max CPU Speed (MHz): 120
• CPU Speed (MIPS/DMIPS): 30
• Program Memory Size (KB): 12
• SRAM (KB): 0.5
• Temperature Range (C): -40 to 125
• Operating Voltage Range (V): 2.5 to 5.5
• Pin Count: 28
• Analog Peripherals
• 1-A/D 6x10-bit @ 1000(ksps)
• UART: 1
• SPI: 1
• I2C: 1
• Timers: 3 x 16-bit 1 x 32-bit
• Motor Control PWM Outputs: 6
• Input Capture: 4
• Max PWM outputs (including complementary): 8
• Number of PWM Time Bases: 2
• Output Compare Channels: 4
• Quadrature Encoder Interface: 1
