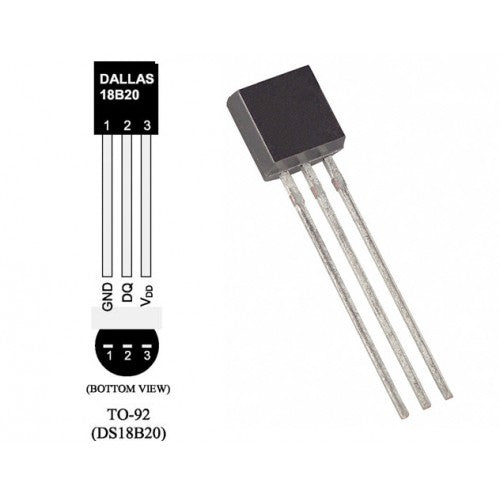

DS18B20 Temperature Sensor

The DS18B20 is a 1-wire programmable Temperature sensor from maxim integrated. It is widely used to measure temperature in hard environments like in chemical solutions, mines or soil etc. The constriction of the sensor is rugged and also can be purchased with a waterproof option making the mounting process easy. It can measure a wide range of temperature from -55°C to +125° with a decent accuracy of ±5°C. Each sensor has a unique address and requires only one pin of the MCU to transfer data so it a very good choice for measuring temperature at multiple points without compromising much of your digital pins on the microcontroller. The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points.

Technical Specification

• Programmable Digital Temperature Sensor
• Communicates using 1-Wire method
• Operating voltage: 3V to 5V
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C
• Output Resolution: 9-bit to 12-bit (programmable)
• Unique 64-bit address enables multiplexing
• Conversion time: 750ms at 12-bit
• Programmable alarm options
• Available as To-92, SOP and even as a waterproof sensor
