Microscale
DRV8825/A4988 Expansion Board
DRV8825/A4988 Expansion Board
Regular price
₦1,500.00 NGN
Regular price
Sale price
₦1,500.00 NGN
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

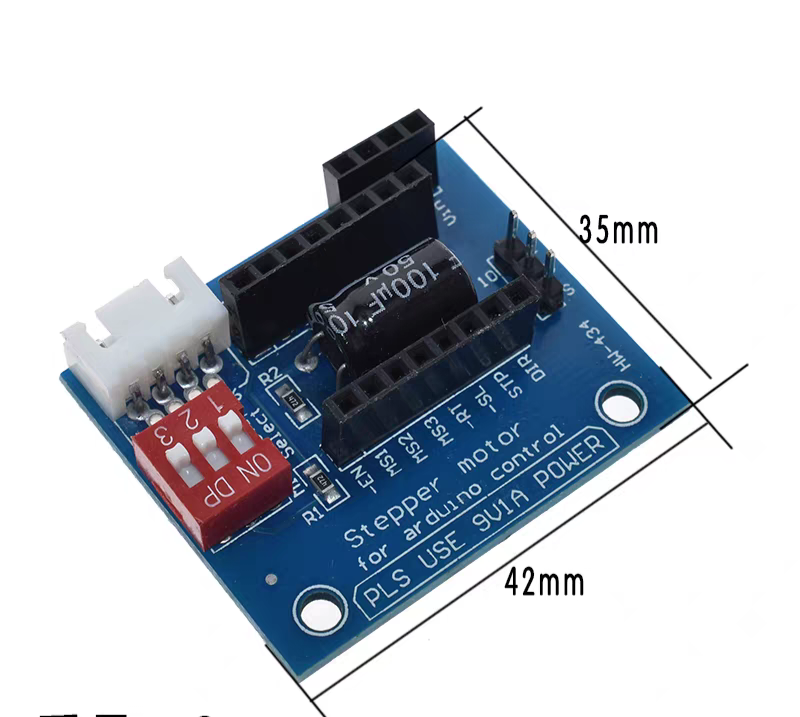

Product Overview
1. Supports A4988 / DRV8825 drivers — Pay attention to orientation when inserting, otherwise the driver may be damaged.
2. When all jumpers are set to ON, the DP position indicates 16-step microstepping (for A4988) or 32-step microstepping (for DRV8825).
3. Jm connects to the motor.
4. Jv connects to the 5V and 12–24V power supply.
5. Jc’s ESDG pins correspond to the connections for Enable / Step / Dir / GND — these output the control signals to the driver.
