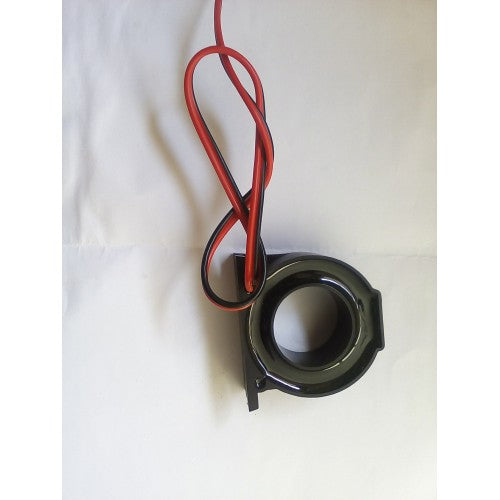

Current Transformer 200A

Current transformer is used to convert large currents in the AC circuit into a small proportion of current for measurement and relay protection. The current transformer has a rated primary current of 200 A and a secondary rated current of 5 A. The burden of the current transformer is 5 VA and its precision is according to class 1. It has a wide current rate and mainly used for motor protection. It has good consistency and easy to use

Technical Specification

• Rated Primary Current 100mA, 200A
• Rated Secondary Current 333mV
• Linearity Accuracy 1% (at 10%-130%)
• Leads 8’(2.5m), twisted pair, 22AWG
• Insulation Voltage 600Vac, Category III
• Frequency range 50/60Hz
• Withstand Voltage 3,000Vac
• Standard IEC 60044-1
• Certification UR, CE approved & RoHS compliant
• Construction Epoxy encapsulated housing
