Digital Storage Osciloscope

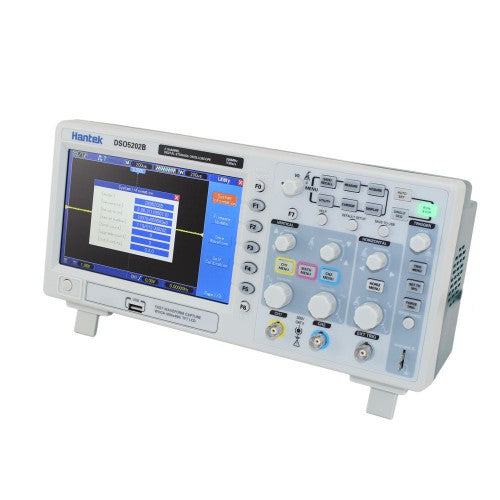

The DSO5202B Digital Storage Oscilloscope is a 200MHz scope that provides real-time sample rates up to 1GSa/s and equivalent sample rates up to 25GSa/s. In addition, it has 1M memory depth for better observation of waveform details. The 7 inch color TFT LCD Display with Windows-style interface and menus provide easy operation. The multifunctional knobs and the powerful shortcut keys help save time during operation. The Autoset function lets you detect sine and square waves automatically. The Probe Check Wizard guides you to adjust the probecompensation and set the Probe option attenuation factor. The DSO5202B provides three help methods (context-sensitive, hyperlinks, and an index). You can quickly master all functions of the DSO5202B to greatly improve your efficiency in production and development. Includes (2) Probes, USB cable & power cord.

Technical Specification

• 200MHz bandwidth
• 1GSa/s Real Time sample rate
• Large(7.0-inch) color display,WVGA(800x480)
• Innovative on screen HELPsystem
• Memory Depth: 40K
• Trigger mode: edge/pulse width/lineselectable video/slop/overtime etc.
• USB host and device connectivity,standard (note: USB port is NOT intended to be used to recharge cell phones& other usb charged devices.)
• Multiple automaticmeasurements
• Four math functions, including FFTs standard- Provides software for PC real-time analysis
