DF15MG metal gear servo (15kg)

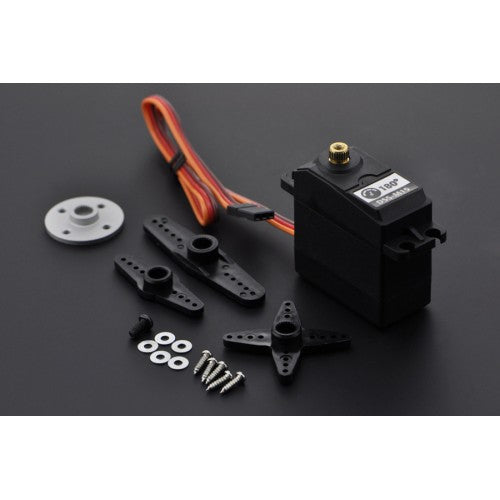

DF15MG is a heavy-duty metal gear standard servo with 180°wide angle, high torque power, improved stability and durability. It is able to take in 6V and deliver a strong torque power of over 15Kg, this tough 180°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DF15MG servo demonstrates a maximum torque of 18Kg without much vibration or heat. In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.

Technical Specification

• Voltage: 4.8-7.2V
• Current: 180mA(4.8V)；220mA（6V）
• Speed(no load)：0.17 s/60 degree (4.8V);0.25 s/60 degree (6.0V)
• Torque：10Kg·cm(4.8V) 12KG·cm(6V) 15KG·cm(7.2V)
• Temperature:0-60 Celius degree
• Size：40.2 x 20.2 x 43.2mm
• Weight：48g
