DAC0832

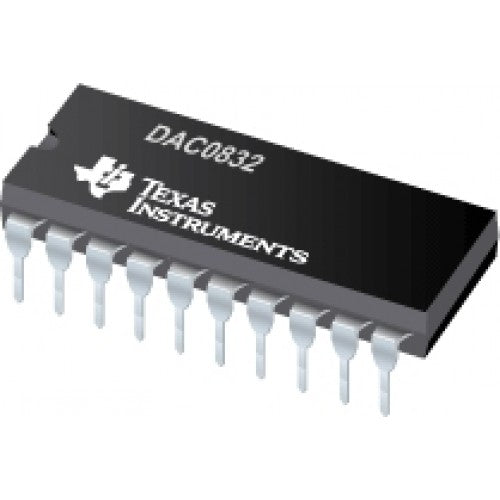

DAC0832’ is a DAC chip or Digital to Analog Conversion IC. The device is from DAC0830 series that are 8-bit members of a family of microprocessor-compatible DACs. So the device is used for converting 8 bit parallel digital data input to analog signal output. The chip is designed with CMOS technology to achieve low power consumption and low output leakage current errors. The design also includes special circuitry that provides TTL logic input voltage level compatibility. Double buffering of the device allows outputting a voltage corresponding to one digital word while holding the next digital word. This also permits the simultaneous updating of any number of DACs.

Technical Specification

• 8 bit parallel digital data input
• Operates from single power supply
• Direct interface to all popular microprocessors
• Operates ‘STAND ALONE’ (without microprocessor or microcontroller) if desired
• Double-buffered, single-buffered or flow-through digital data inputs
• Digital inputs are TTL and CMOS compatible
• Can be used in the voltage switching mode
• Works with ±10V reference
• Easy interchange and pin-compatible with 12-bit DAC1230 series
• Linearity specified with zero and full scale adjust only
• Power supply voltage range: +5V to +15V
• Low power consumption: 20 mW
• Maximum Power dissipation: 500 mW
• Operating temperature range: 0ºC to +75ºC
• Maximum ESD protection: 800V
