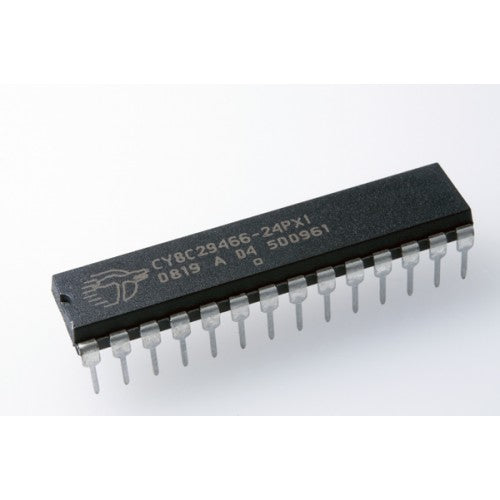

CY8C29466

These devices are designed to replace multiple traditional microcontroller unit (MCU)-based system components with one, low-cost single-chip programmable device. PSoC devices include configurable blocks of analog and digital logic, as well as programmable interconnects. This architecture allows you to create customized peripheral configurations that match the requirements of each individual application. Additionally, a fast central processing unit (CPU), flash program memory, SRAM data memory, and configurable I/O are included in a range of convenient pinouts and packages

Technical Specification

• Powerful Harvard-architecture processor
  • M8C processor speeds to 24 MHz
  • Two 8 × 8 multiply, 32-bit accumulate
  • Low power at high speed
  • Operating voltage: 3.0 V to 5.25 V
  • Operating voltages down to 1.0 V using on-chip switch mode pump (SMP)
  • Industrial temperature range: –40 °C to +85 °C
• Advanced peripherals (PSoC® blocks)
  • 12 rail-to-rail analog PSoC blocks provide:
    • Up to 14-bit analog-to-digital converters (ADCs)
    • Up to 9-bit digital-to-analog converters (DACs)
    • Programmable gain amplifiers (PGAs)
  • Programmable filters and comparators -16 digital PSoC blocks provide:
    • 8- to 32-bit timers and counters, 8- and 16-bit pulse-width modulators (PWMs)
    • Cyclical redundancy check (CRC) and pseudo random sequence (PRS) modules
    • Up to four full-duplex universal asynchronous receiver transmitters (UARTs)
    • Multiple serial peripheral interface (SPI) masters or slaves
    • Can connect to all general-purpose I/O (GPIO) pins
  • Create complex peripherals by combining blocks
