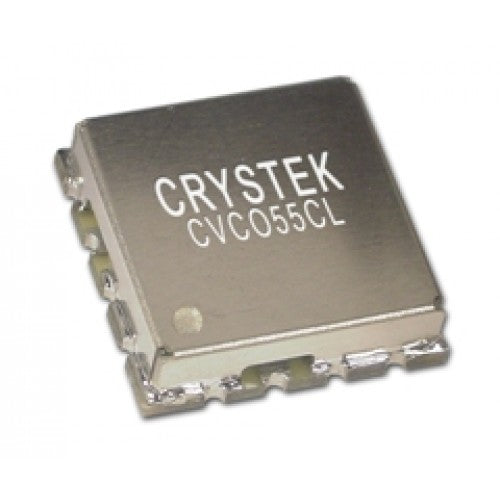

CVCO55CL Voltage Controlled Oscillator

The CVCO55CL series is designed for narrow band Voltage Controlled Oscillator (VCO) applications. It offers frequencies from 30MHz to 2.0GHz, very Low Phase Noise, Low Harmonics, and Excellent Linearity throughout its tuning range. Pushing and Pulling are reduced a minimum.

Technical Specification

• Frequency : 90 to 100 MHz
• Power : 12.589 mW
• Tuning Sensitivity : 8 MHz/V
• Tuning Voltage : 0.5 to 4.5 V
• Pulling : 0.2 to 0.4 MHz
• Pushing : 0.2 to 0.4 MHz/V
• Phase Noise : -138 to -117 dBc/Hz
• Phase Noise dBc/Hz @10kHz : -119 to -117 dBc/Hz
• Phase Noise dBc/Hz @100kHz : -138 to -133 dBc/Hz
• Harmonic Supression : -10 dBc
• Input Capacitance : 150 pF
• Supply Voltage : 4.75 to 5.25 Vdc
• Supply Current : 15 to 25 mA
• Impedance : 50 Ohms
