Bridge Rectifier (10A)

Bridge Rectifier (10A)

Regular price ₦450.00 NGN
Regular price Sale price ₦450.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

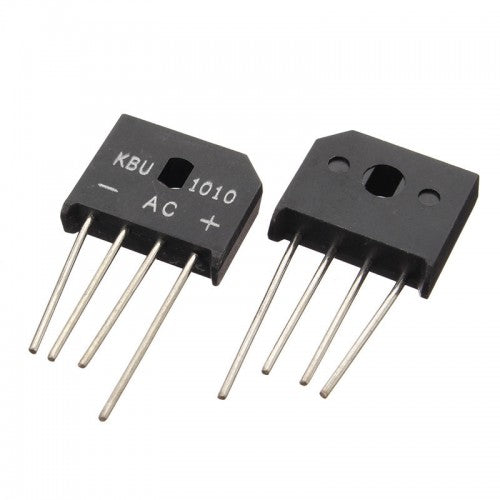

KBU1010 Bridge Rectifier (10A)

A bridge rectifier is an arrangement of four or more diodes in a bridge circuit configuration which provides the same output polarity for either input polarity. It is used for converting an alternating current (AC) input into a direct current (DC) output. A bridge rectifier provides full-wave rectification from a two-wire AC input, therefore resulting in lower weight and cost when compared to a rectifier with a 3-wire input from a transformer with a center-tapped secondary winding. It has Low Forward Voltage Drop, High Current Capability,High Reliability and High Surge Current Capability

Technical Specification

  • Bridge Type: Single Phase
  • Diode Type: Bridge Rectifier
  • Peak Average Forward Current: 10 A
  • Peak Forward Voltage: 1.0 V
  • Peak Non Repetitive Forward Surge Current: 300 A
  • Peak Reverse Current: 10 μA
  • Peak Reverse Repetitive Voltage: 1000 V
  • Peak RMS Reverse Voltage: 700 V
  • Squared Current Time Rating: 373 A2s
  • Mounting Type: Through Hole
  • Pin Count: 4
  • Operating Temperature Range: -65 to +125 °C
  • Dimensions: 23.7 x 7.1 x 19.3 mm
