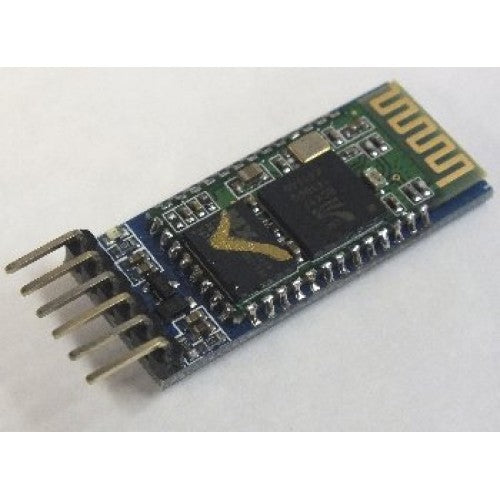

HC-05 Bluetooth Module Master

The HC-05 is a very cool module which can add two-way (full-duplex) wireless functionality to your projects. You can use this module to communicate between two microcontrollers like Arduino or communicate with any device with Bluetooth functionality like a Phone or Laptop. There are many android applications that are already available which makes this process a lot easier. The module communicates with the help of USART at 9600 baud rate hence it is easy to interface with any microcontroller that supports USART. We can also configure the default values of the module by using the command mode. So if you looking for a Wireless module that could transfer data from your computer or mobile phone to microcontroller or vice versa then this module might be the right choice for you

Technical Specification

• Serial Bluetooth module for Arduino and other microcontrollers
• Operating Voltage: 4V to 6V (Typically +5V)
• Operating Current: 30mA
• Range: <100m
• Works with Serial communication (USART) and TTL compatible
• Follows IEEE 802.15.1 standardized protocol
• Uses Frequency-Hopping Spread spectrum (FHSS)
• Can operate in Master, Slave or Master/Slave mode
• Can be easily interfaced with Laptop or Mobile phones with Bluetooth
• Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.
