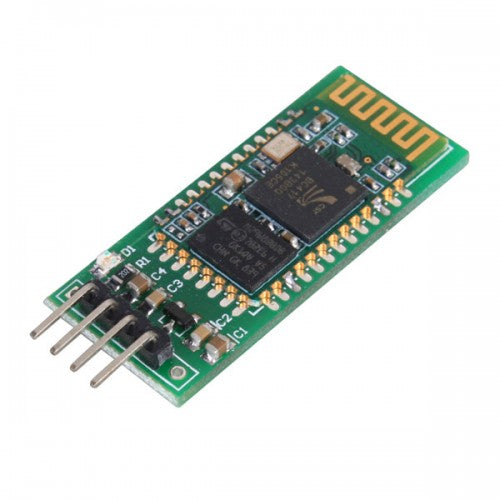

Bluetooth Module HC-06 (slave)

Bluetooth Module HC-06 (slave)

Regular price ₦10,350.00 NGN
Regular price Sale price ₦10,350.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

HC-06 Bluetooth Module(slave)

HC-06 is a Bluetooth module designed for establishing short range wireless data communication between two microcontrollers or systems. The module works on Bluetooth 2.0 communication protocol and it can only act as a slave device. This is cheapest method for wireless data transmission and more flexible compared to other methods and it even can transmit files at speed up to 2.1Mb/s.

HC-06 uses frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.

Technical Specification

  • Bluetooth protocol: Bluetooth V2.0 protocol standard
  • Power Level: Class2(+6dBm)
  • Band: 2.40GHz—2.48GHz, ISM Band
  • Receiver sensitivity: -85dBm
  • USB protocol: USB v1.1/2.0
  • Modulation mode: Gauss frequency Shift Keying
  • Safety feature: Authentication and encryption
  • Operating voltage range:+3.3V to +6V
  • Operating temperature range: -20ºC to +55ºC
  • Operating Current: 40mA
