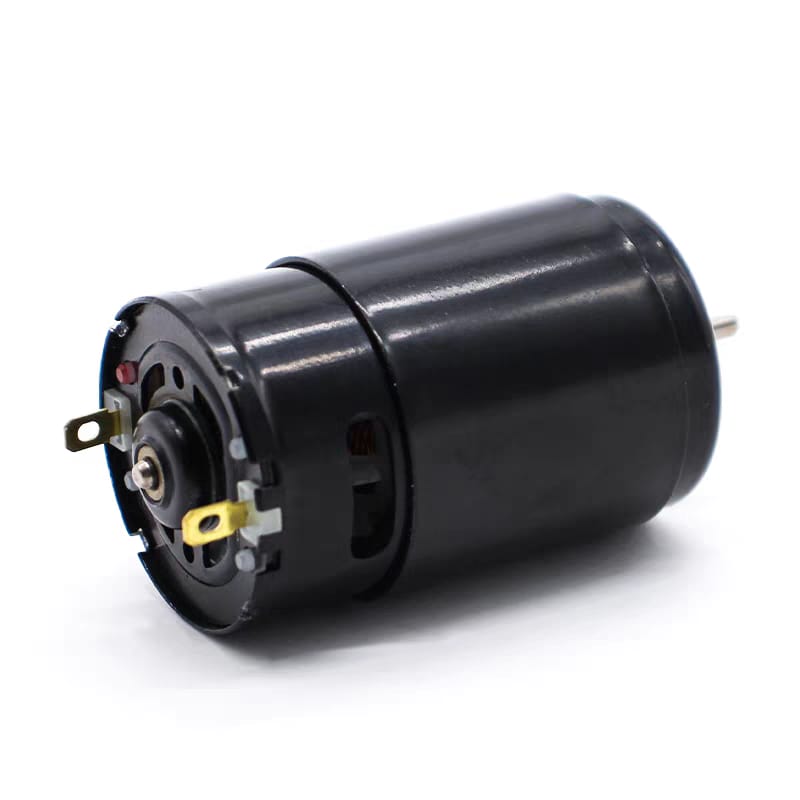

Black-cased 550 motor 12v 13000rpm

This black-cased 550 motor can be used for DIY projects such as power cars, off-road model cars, electric drills, etc. It features high torque, low noise, a brushed “black horse” motor, extended oil-impregnated bushings, low noise, and long lifespan. The internal rotor uses multi-pole windings for strong torque. It requires a 12V 2A or higher current adapter to operate.

Below are the specific parameters at 12V:
No-load speed: 13,000 rpm
No-load current: 0.93A
Stall current: 3.1A
Voltage: 12V
Shaft diameter: 3.175mm D-shaft (flat side), flat height approx. 2.4mm
Shaft length: 9.5mm
Motor diameter: 36mm
Motor body length: 62mm (excluding shaft)
Mounting holes: 25mm spacing, 3mm screw holes
Weight: approx. 226g
