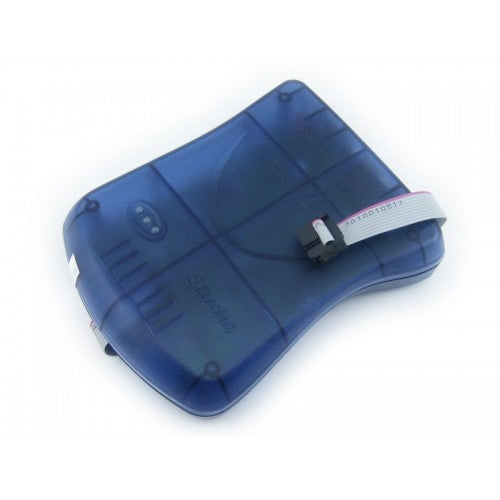

AVR JTAG ICE MKII

AVR JTAG ICE MKII is a mid-range development tool for 8-bit and 32-bit AVR devices with on-chip debugging for source level symbolic debugging, NanoTrace (if supported by the device) and device programming. It supports SP, JTAG, PDI, and aWire modes and interface debugging. The tool is firmware upgradeable to support future AVR devices.

Technical Specification

• Fully compatible with AVR JTAGICE mkII, Type B except it does not support PDI on Xmega devices
• Operates from Atmel AVRStudio software and AVRDUDE
• Allows emulation of all AVR microcontrollers with a JTAG or debugWire interface
• Allows programming of all AVR microcontrollers supported by AVRDude software
• Allows debugging of code written both in Assembler and C language
• Connection to PC through USB port or RS232
• Supports software upgrade from AVRStudio for new device support
• Three built-in LED indicators show operation
• Standard 10-pin connector to the target circuit in Atmel format, plus other connectors
• Power can be taken from USB, or from external power supply
• Supported by Windows 2000/XP/Vista/7 (32 and 64-bit)
