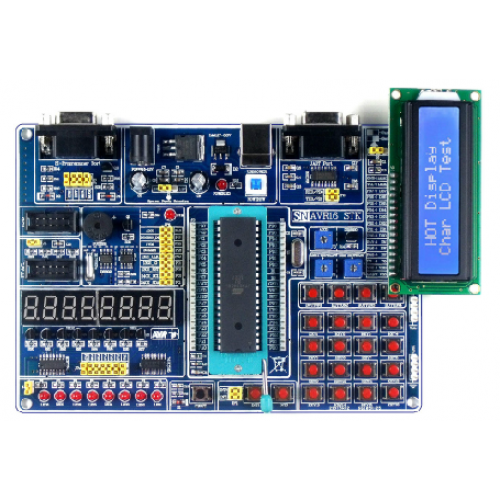

AVR Development Kit

1

Power Input / Output

13

Buzzer Module

2

On-board SI-Programmer Port

14

DS1302 Module

3

System Power Supply

15

Eeprom 24CX Module

4

RS232 Communication Port

16

PWM

5

LCD1602 & LCD12864 Ports

17

8-BITs-7-seg Display Module

6

LCD12864 Contrast Potentiometer

18

8 LEDs

7

LCD1602 Contrast Potentiometer

19

Mega16 core with All Pinouts

8

System Clock (External Clock)

20

ADC Filter

9

ADC0 Potentiometers

21

System Reset Button

10

DS18B20 Module

22

INT0 & INT1 Input Keys

11

ISP Programming Port

23

4 * 4 Keys

12

JTAG Debugging Port

24

4 User BUTTONS
