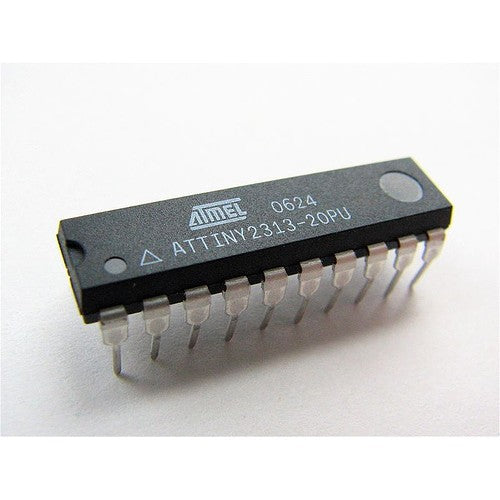

ATtiny2313

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 2KB ISP flash memory, 128B ISP EEPROM, 128B internal SRAM, universal serial interface (USI), full duplex UART, and debugWIRE for on-chip debugging. The device supports a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Technical Specification

• 2K Bytes of In-System Self-Programmable Flash
• 128 Bytes In-System Programmable EEPROM
• 128 Bytes Internal SRAM
• 3 Sleep Modes
• 18 I/O pins
• 2 external interrupts
• One 8-bit timer/counter
• One 16-bit timer/counter
• 10-bit ADC, USI-Universal Serial Interface
• debug WIRE for on-chip-debug
• 2.7 -5.5 V operation.
