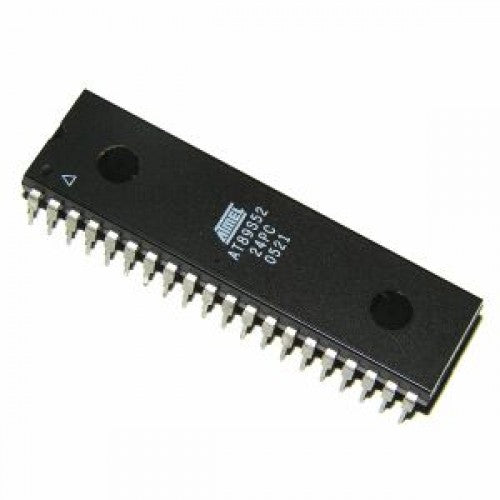

AT89s52

This is a Low-power, high-performance CMOS 8-bit microcontroller with 8KB of ISP flash memory. The device uses Microchip high-density, nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. On-chip flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. This powerful microcontroller is suitable for many embedded control applications.

Technical Specification

• Program Memory Type: Flash
• Program Memory Size (KB): 8
• CPU Speed (MIPS/DMIPS): 4
• Digital Communication Peripherals: 1-UART
• Operating Voltage Range (V): 4 to 5.5
• 8K Bytes of In-System Programmable (ISP) Flash Memory
  • Endurance: 10,000 Write/Erase Cycles
• Fully Static Operation: 0 Hz to 33 MHz
• Three-level Program Memory Lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O Lines
• Three 16-bit Timer/Counters
