Microscale

Arduino Mega2560

Arduino Mega2560

Regular price ₦33,750.00 NGN
Regular price Sale price ₦33,750.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

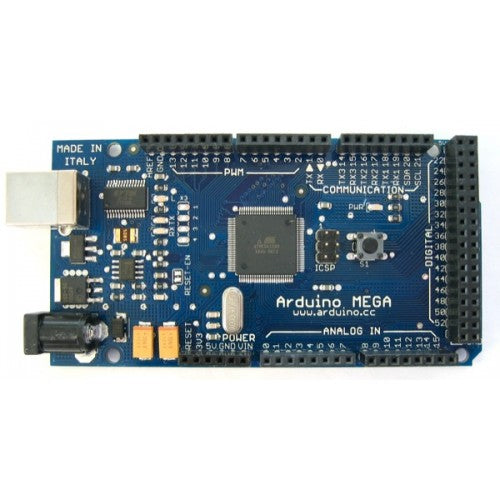

Arduino Mega 2560

The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. Never fear for accidental electrical discharge, either since since the Mega also includes a plastic base plate to protect it!

The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

Technical Specification

  • ATmega2560 microcontroller
  • Input voltage - 7-12V
  • 54 Digital I/O Pins (14 PWM outputs)
  • 16 Analog Inputs
  • 256k Flash Memory
  • 16Mhz Clock Speed
