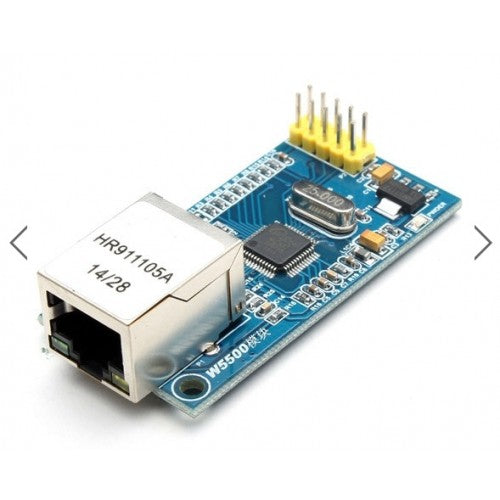

Arduino Ethernet shield W5500

The W5500 Ethernet Shield for Arduino is a great way to set up your projects with internet connectivity with just a single chip. Similar to the Arduino Ethernet Shield, but with a newer chipset, this ethernet shield supports both TCP and IP Protocols in TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPoE format. The RJ45 ethernet port is also low enough so you can stack another shield on top of it

The board includes a microSD card holder and has a working voltage of 5V. It also requires an Arduino to use - either Uno or Mega - to use.

Technical Specification

• Suppport 3.3V / 5V
• High Speed Ethernet controller W5500 chip
• SPI interface
• Internal 32Kbytes Tx/Rx buffer
• 10/100 Ethernet PHY embedded
• Support Auto Negotiation (Full / Half duplex, 10 / 100-based)
• Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• User Selectable GPIO pin
• Support SD-card slot for storage
• Support I2C, UART interface
