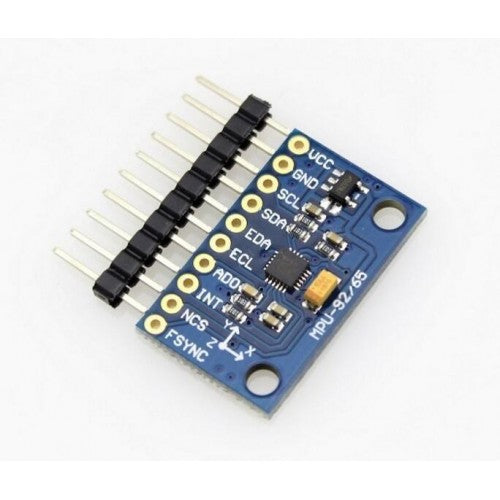

Accelerometer MPU9250

MPU-9250 is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis gyroscope and the 3-Axis accelerometer. The other die houses the AK8963 3-Axis magnetometer from Asahi Kasei Microdevices Corporation. Hence, the MPU-9250 is a 9-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) all in a small 3x3x1mm package available as a pin-compatible upgrade from the MPU6515. With its dedicated I2C sensor bus, the MPU-9250 directly provides complete 9-axis MotionFusion output. The MPU-9250 MotionTracking device, with its 9-axis integration, on-chip MotionFusion™, and runtime calibration firmware, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance for consumers. MPU-9250 is also designed to interface with multiple non-inertial digital sensors, such as pressure sensors, on its auxiliary I2C port.

Technical Specification

• Acceleration, Gyroscope, and Magnetometer
• Power Supply: DC3.3V-5V
• Chips: MPU9265 + HMC5883
• Size: 22 mm x 17 mm.
• Gyro range : ± 250 500 1000 2000 ° / s
• Acceleration range: ± 2 ± 4 ± 8 ± 16g
• Magnetic field range: ± 4800uT
• 9 DOF modules (three-axis gyroscope + triaxial accelerometer and three-axis magnetic field + atmospheric pressure).
