795 motor 12V high speed, high torque, high power DC model motor

795 motor 12V high speed, high torque, high power DC model motor

Regular price ₦13,500.00 NGN
Regular price Sale price ₦13,500.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

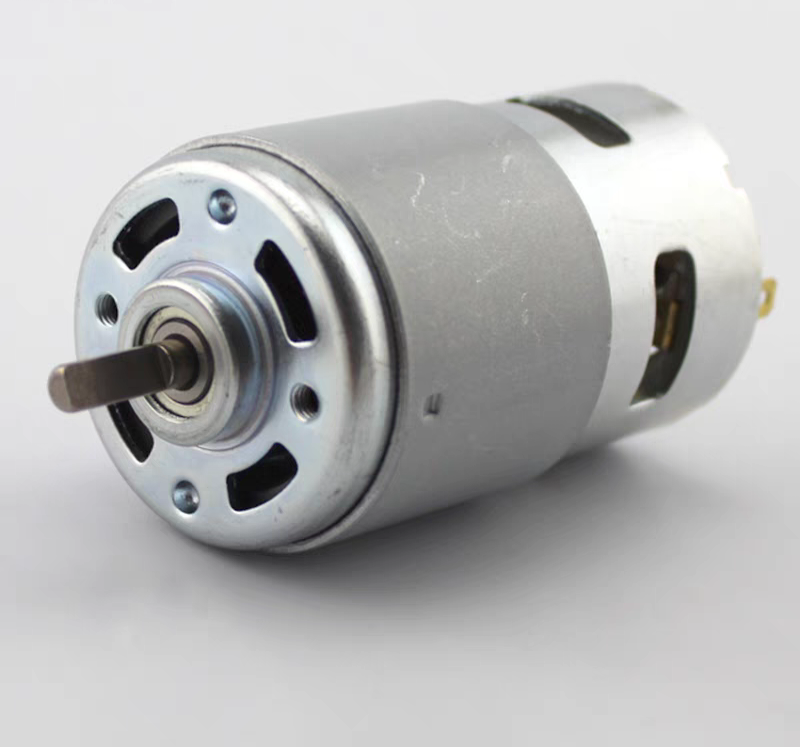

795 motor (D-type shaft) 12v high speed, high torque, high power DC model motor with bearings.



Specifications:


Rated voltage: 12V


12V, no-load current 0.9A blocking current 3.34A, speed 8000RPM

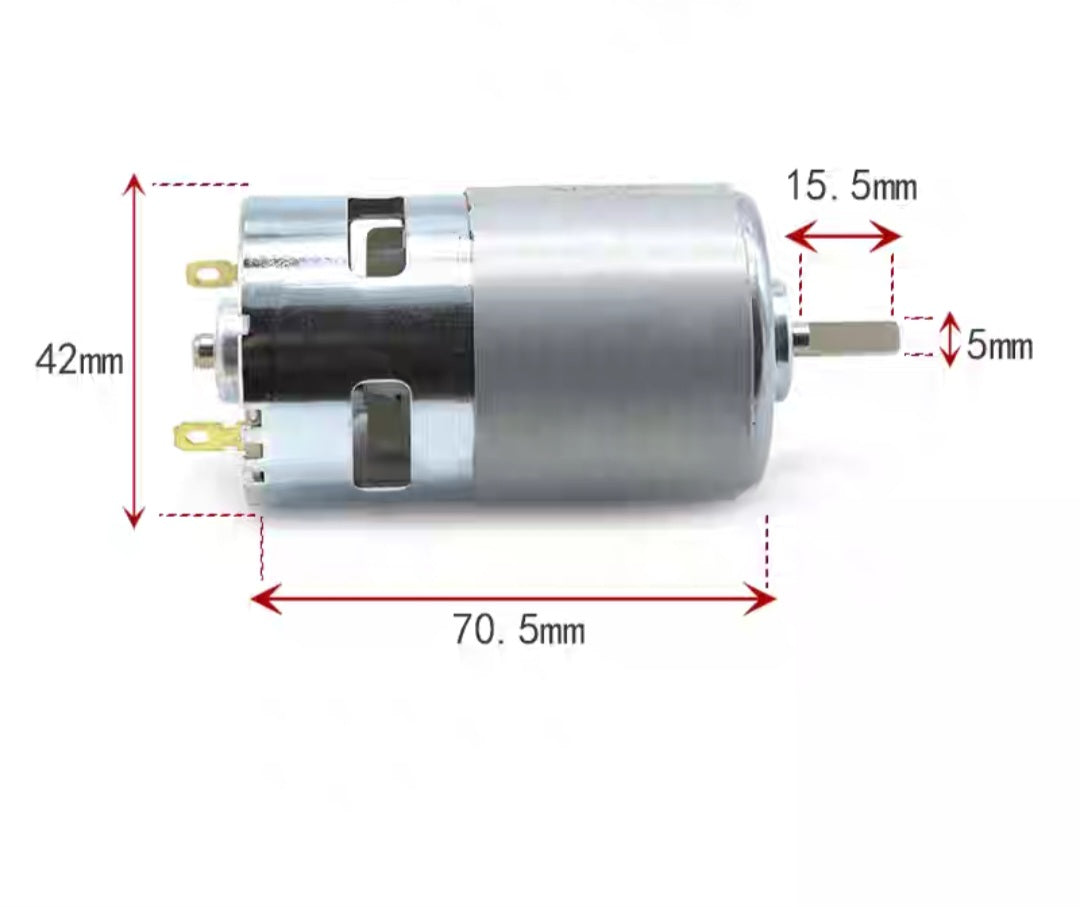

Motor size parameters for reference:


Motor diameter: 44.5mm (with shell)

Motor diameter: 42mm (without shell)

Motor length: 70.5mm (excluding both ends and shaft)

Pitch of mounting hole: approx. 29mm

Mounting hole diameter: M4 screw

Solder tab termination.


Motor shaft parameters for reference:


Output shaft length: 15.5mm (shaft length above the step level)

Motor shaft diameter: 5mm shaft (1.5mm chamfered edge, trimmed length 13mm)


Motor step parameters for reference:


Motor front step height: 4.5mm

Motor front step diameter: 17.5mm

Motor tail step height: about 7mm

Motor tail shaft length: about 4mm




Product size: 9.8*4.5*0.5cm
