Microscale

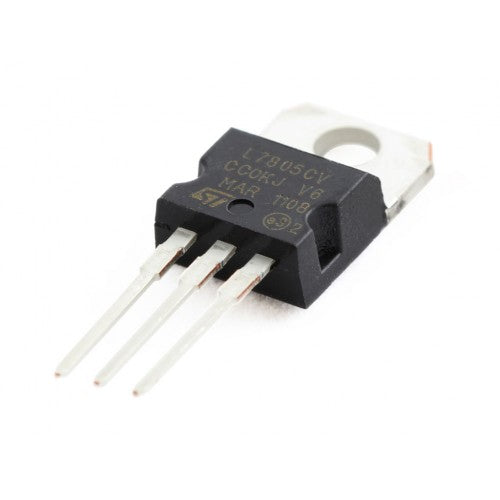

7805 voltage regulator

7805 voltage regulator

Regular price ₦375.00 NGN
Regular price Sale price ₦375.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

L7805CV

The L7805CV is a three-terminal positive Voltage Regulator with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Technical Specification

  • Output Current up to 1A
  • Output Voltage 6V
  • Thermal Overload Protection
  • Short Circuit Protection
  • Output Transistor Safe Operating Area Protect
