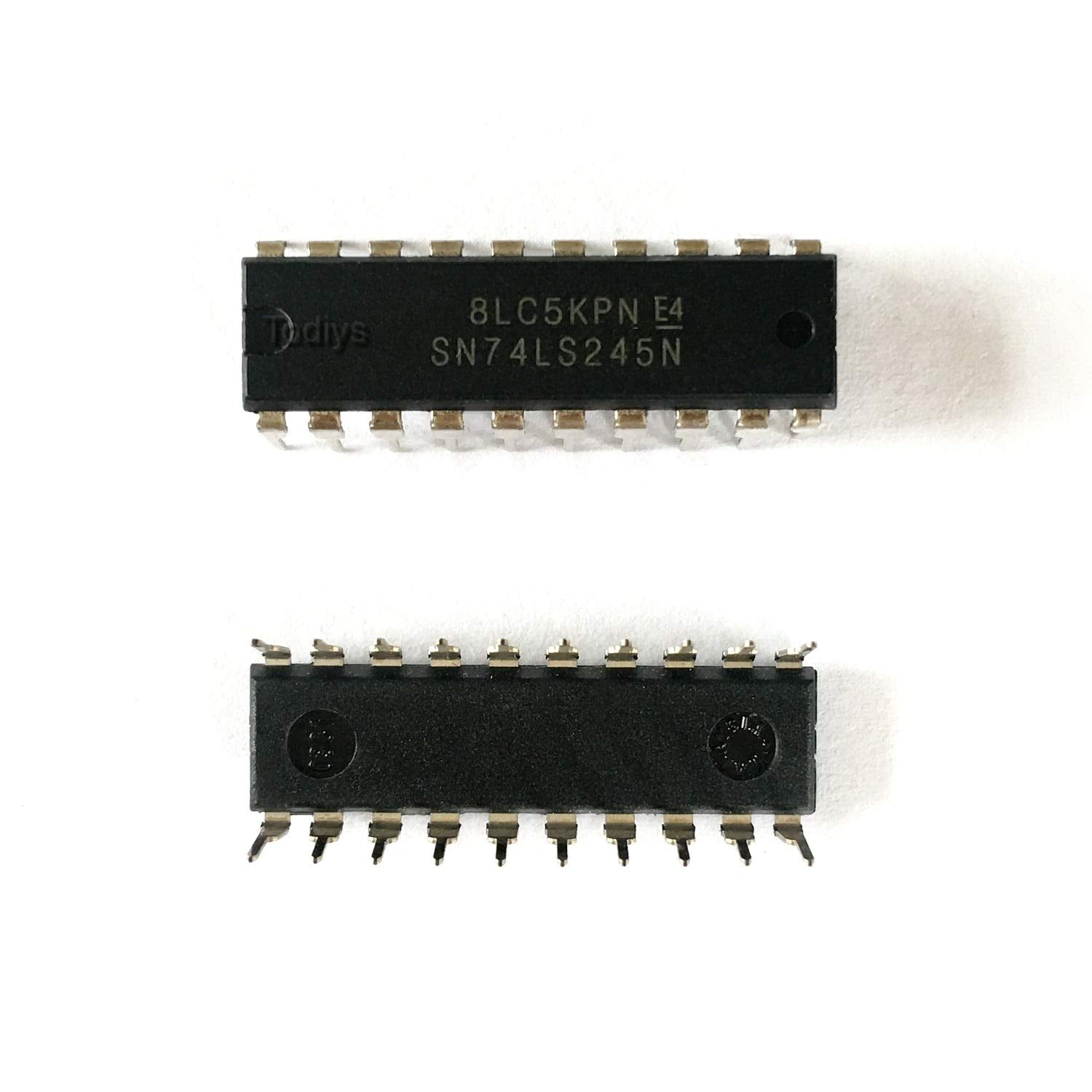

74LS245N IC

74LS245N IC

Regular price ₦525.00 NGN
Regular price Sale price ₦525.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

HD 74LS245N

Bus Transceivers Octal Bus 74LS245 IC





Encapsulation: DIP-20

Logic Family: LS
Logic Function: Bus Transceiver
Data Flow Direction: Bi-Directional
Number of Elements per Chip: 1
Number of Channels per Chip: 8
Number of Output Enables per Element: 1 Low
Number of Direction Control Inputs: 1 Low/High
Polarity: Non-Inverting
Absolute Propagation Delay Time (ns): 40
Maximum Propagation Delay Time @ Maximum CL (ns): 12@5V
Propagation Delay Test Condition (pF): 45
Process Technology: Bipolar
Input Level: TTL
Output Level: TTL
Output Type: 3-State
Maximum Low Level Output Current (mA): 24
Maximum High Level Output Current (mA): -15
Typical Quiescent Current (uA): 64000
Maximum Quiescent Current (uA): 95000
Minimum Operating Supply Voltage (V): 4.75
Maximum Operating Supply Voltage (V): 5.25
Operating Temperature: 0 C~+70 C
Size: 24.5mm x 9.2mm x 7mm
Quantity: 30 Pcs
NOTE: Kindly compare your original
