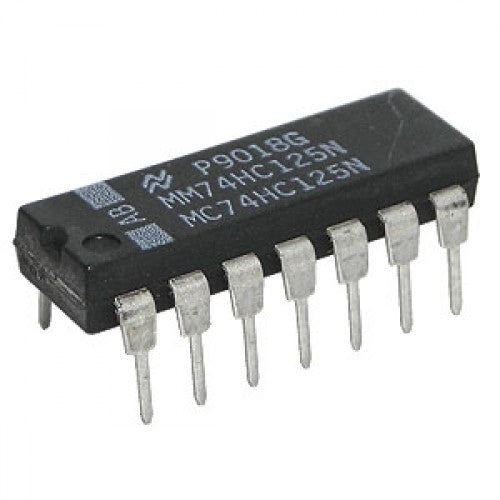

74HC125N

The 74HC125 provides provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that if driven with a high logic level places the corresponding output in the high impedance state. The device is designed for operation with a power supply range of 2.0V to 6.0V.

Technical Specification

• High Level Output Current -7.8 mA
• Logic Function Buffer
• Low Level Output Current 7.8 mA
• Max Operating Temperature 125 °C
• Max Supply Voltage 6 V
• Min Operating Temperature -40 °C
• Min Supply Voltage 2 V
• Number of Bits 4
• Number of Channels 4
• Number of Elements 4
• Number of Gates 4
• Number of Inputs 4
• Number of Outputs 4
• Operating Supply Voltage 5 V
• Polarity Non-Inverting
• Propagation Delay 190 ns
• Quiescent Current 8 µA
• Compliance
• Lead Free Lead Free
• REACH SVHC No SVHC
• Radiation Hardening No
• RoHS Compliant
