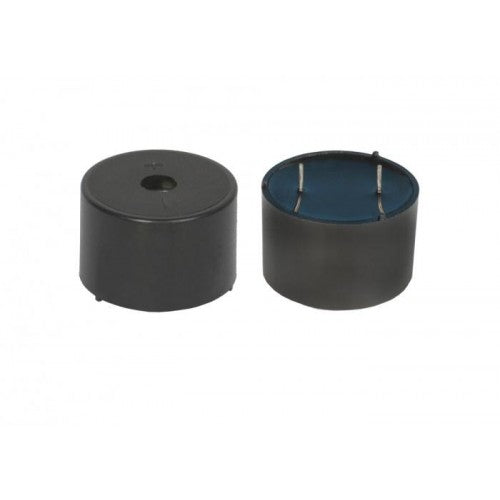

5v buzzer TMB12A05

5v buzzer TMB12A05

Regular price ₦255.00 NGN
Regular price Sale price ₦255.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

5v Buzzer

A buzzer is a small yet efficient component to add sound features to our project/system. It is very small and compact 2-pin structure hence can be easily used on breadboard, Perf Board and even on PCBs which makes this a widely used component in most electronic applications. This buzzer can be used by simply powering it using a DC power supply ranging from 4V to 9V. A simple 9V battery can also be used, but it is recommended to use a regulated +5V or +6V DC supply. The buzzer is normally associated with a switching circuit to turn ON or turn OFF the buzzer at required time and require interval.

Technical Specification

  • Rated Voltage: 5V DC
  • Operating Voltage: 4-8V DC
  • Rated current: <30mA
  • Sound Type: Continuous Beep
  • Resonant Frequency: ~2300 Hz
  • Small and neat sealed package
  • Breadboard and Perf board friendly
