5V 2A wireless charging module
5V 2A wireless charging module
Couldn't load pickup availability

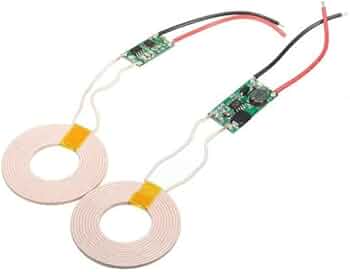

5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module.
Description :
Efficient Wireless Charging: This module provides an efficient method for wireless charging, delivering a stable 5V output with a 2A current capacity, suitable for a wide range of devices.
Compact Design: The transmitter and receiver coils are compact and easy to integrate into various electronic devices, making it ideal for compact and portable applications.
Universal Compatibility: This module is designed to work with a wide range of devices, including smartphones, wearables, and other battery-powered electronics, thanks to its 5V/1A output voltage.
Overcurrent and Overvoltage Protection: Built-in safety features such as overcurrent and overvoltage protection ensure the safety of both the charging device and the module itself.
DIY and Customizable: The module is user-friendly and can be easily integrated into DIY projects. Its customizable design allows for versatile applications and configurations.
Specifications :
Model: XKT-412.
Input Voltage: 12VDC
Output: 5V / 1A current
Normal Use Distance: 2 ~ 10mm
Operating Current: 1.2-2 A.
Tx/Rx Coil Dimensions Diameter 43mm, Inner diameter 20mm,
Coil Wire Thickness: 2.3mm
The transmitting module size: 18mm*8.5mm*15mm
The receiving module size: 10mm*25mm*3mm
