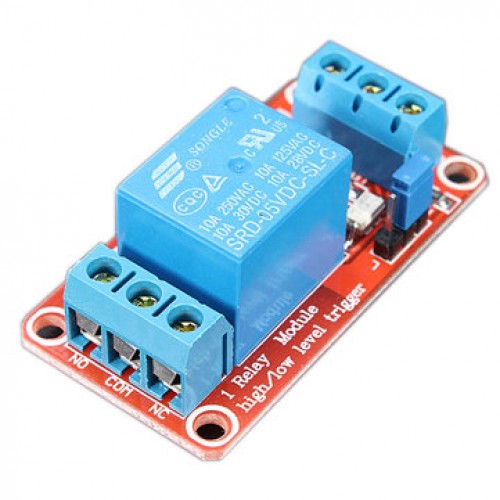

5v 1 channel relay module

5v 1 channel relay module

Regular price ₦1,650.00 NGN
Regular price Sale price ₦1,650.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

1 channel relay module

A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.

Technical Specification

  • Each channel has indication LED.
  • Coil voltage 12V per channel.
  • Kit operating voltage 5-12 V
  • Input signal 3-5 V for each channel.
  • Three pins for normally open and closed for each channel.
  • High Input voltage trigger
  • On-board LED to indicate the working status
  • Max Control Capacity:10A@250VAC or 10A@30VDC
