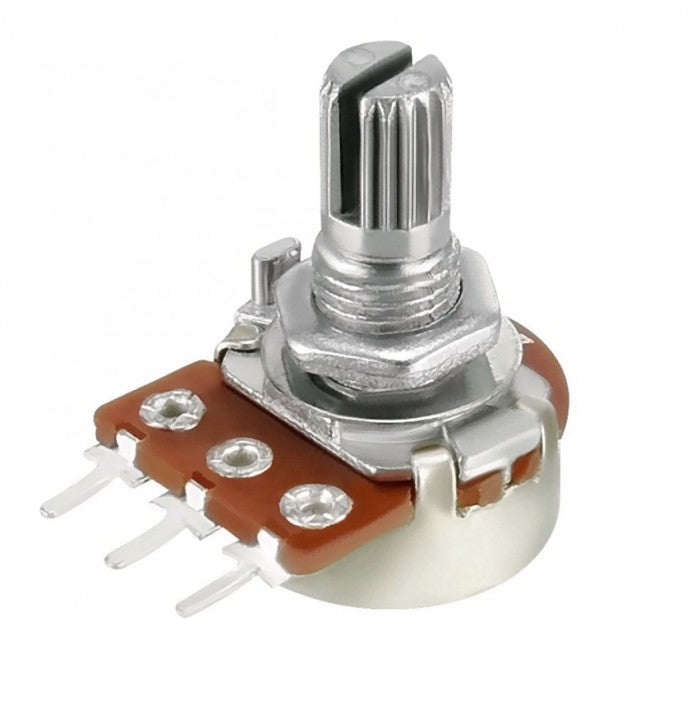

5K Linear Taper Rotary Type Potentiometer

5K Ohm Rotary Potentiometer / Variable Resistor Linear Taper Rotary Type Potentiometer

SPECIFICATION:

Model: B5K

PCB Mounted

Breadboard Friendly

Resistance Value: 5K ohm

Power: 1/2W

Adjustment Type: Top Adjustment

Type: Single Linear (Type B)

Features: Knurled Shaft

Shaft Diameter: 6mm / 0.23″

Shaft Length: 13mm / 0.51″

Mounting Hole: 7.5mm / 0.29″

Base Height: 7mm / 0.27″

Base Diameter: 16mm / 0.62″

Material: Metal w Electronic Parts
