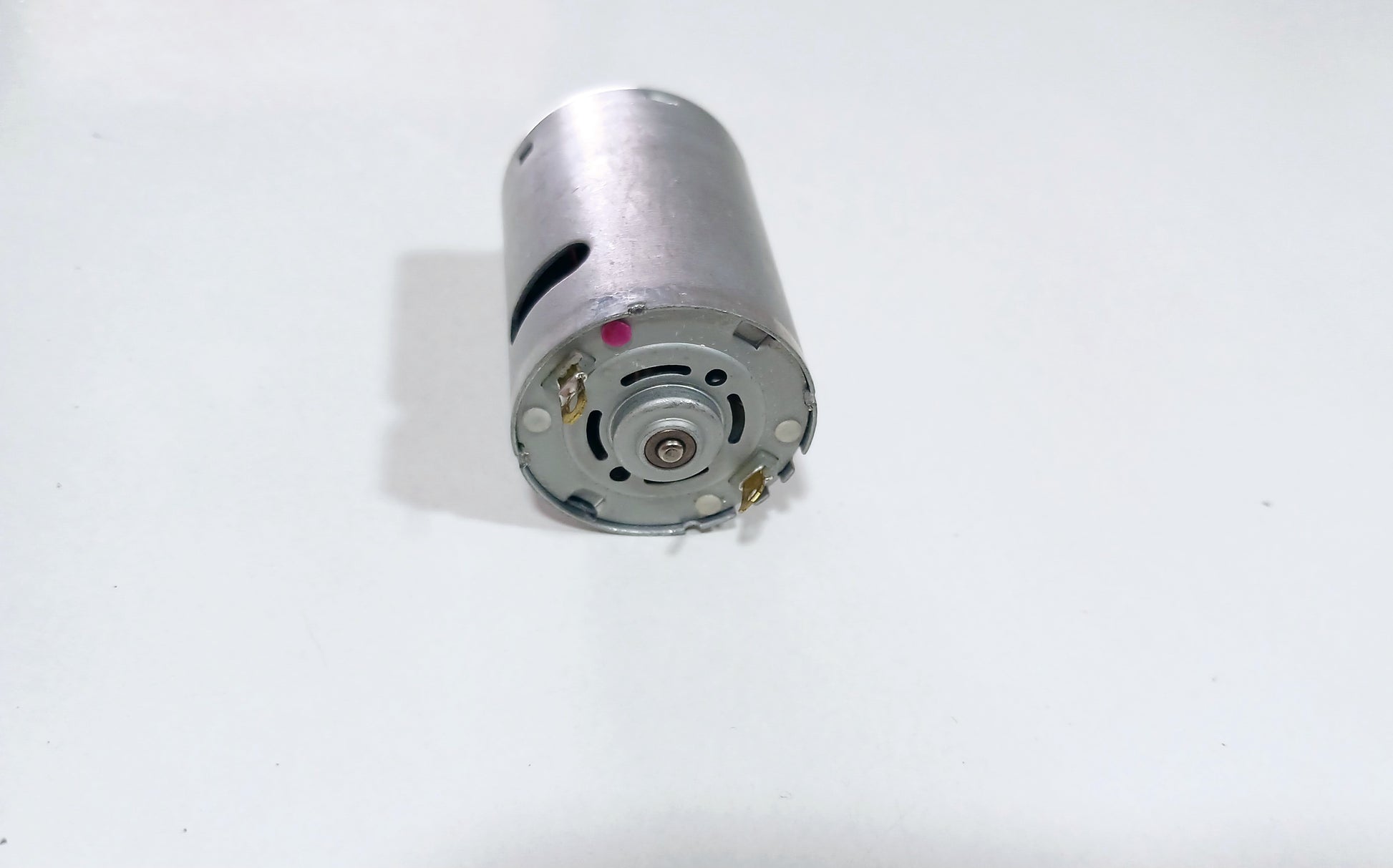

RS540 Motor 6v

This is a 6V 540 motor, suitable for making DIY small hand drills.

[Motor model] 540 motor (6V iron cover)

[Rated voltage] 6V

[Motor shaft length] 9mm

[Motor shaft diameter] 3mm

[Black height] 0.5mm

[Step height] 4.5mm

[Step diameter] 13mm

[Main body length] 50mm (excluding shaft length, front and rear protrusions)

[Motor length] 70mm

[Motor diameter] 35.5mm

[Fixed hole diameter] 3mm

[Fixed hole spacing] about 24.5mm

[Product weight] about 158g

[Motor parameters]

DC: 6V Idle speed: about 5000 rpm Idle current: 0.40A Stalled current: 0.97A
