2.8 inch TFT SPI interface Display

2.8 inch TFT SPI interface Display

₦20,500.00 NGN
₦20,500.00 NGN
Sale Sold out
Shipping calculated at checkout.

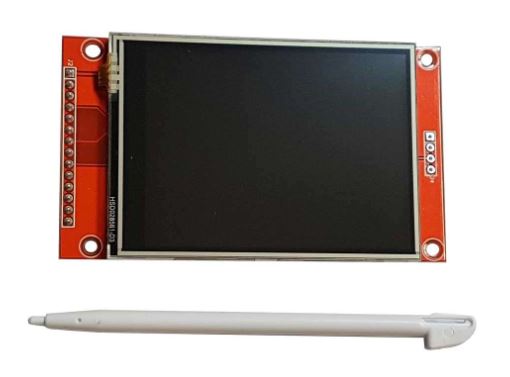

2.8 inch TFT Display for Arduino

This 2.8” TFT Touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug inoto the UNO/Mega2560 board without any wiring and soldering.

Driver IC: ILI9341

Product Features

  1. Supports direct plug-in for various microcontroller boards without any wiring.
  2. Built-in voltage regulator IC, supports 5V or 3.3V power supply.
  3. Onboard level-shifting scheme, truly lossless and compatible with 5V / 3.3V IO levels, supports IO connections for various microcontrollers.
  4. Built-in backlight control circuit, can control on/off or adjust brightness via PWM.
  5. Integrated SD card expansion circuit.
  6. Reserved SPI FLASH library circuit for easy expansion applications.

11-Pin LCD Module Interface Pin Definition

NO. TFT Pin Note
1 VCC Module power positive, supports 5V or 3.3V input
2 GND Module power negative, ground
3 GND Same function as pin 2, can be left unconnected
4 NC Not connected
5 NC Not connected
6 LED Backlight control pin, high level = backlight on
7 CLK SPI serial clock signal
8 SDI SPI serial data input signal
9 RS Command (RS=0) / Data (RS=1) selection
10 RST LCD reset signal
11 CS LCD chip select signal

5-Pin Expansion Header Pin Definition

NO. TFT Pin Note
1 SD_CS SD card chip select signal
2 SD_MOSI SPI bus MOSI data input
3 SD_MISO SPI bus MISO data output
4 SD_SCK SPI bus serial clock signal
5 F_CS SPI FLASH chip select signal.
