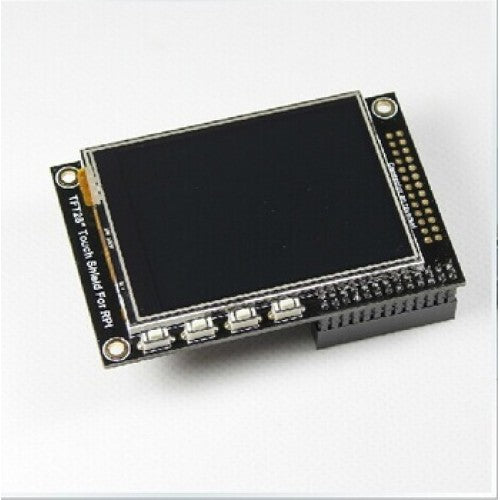

2.8 inch Resistive touch display for raspberry pi

features a 2.8 display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and canuse the mini display as a console, X window port, displaying images or videoetc. Best of all it plugs right in on top!

It s designed to fit nicelyonto the Pi Model A or B but also works perfectly fine with the Model B+ aslong as you don t mind the PCB overhangs the USB ports by 5mm.

Uses thehardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. Allother GPIO are unused. Since we had a tiny bit of space, there s 4 spots foroptional slim tactile switches wired to four GPIOs, that you can use if youwant to make a basic user interface.For example, you can use one as a poweron/off button.
