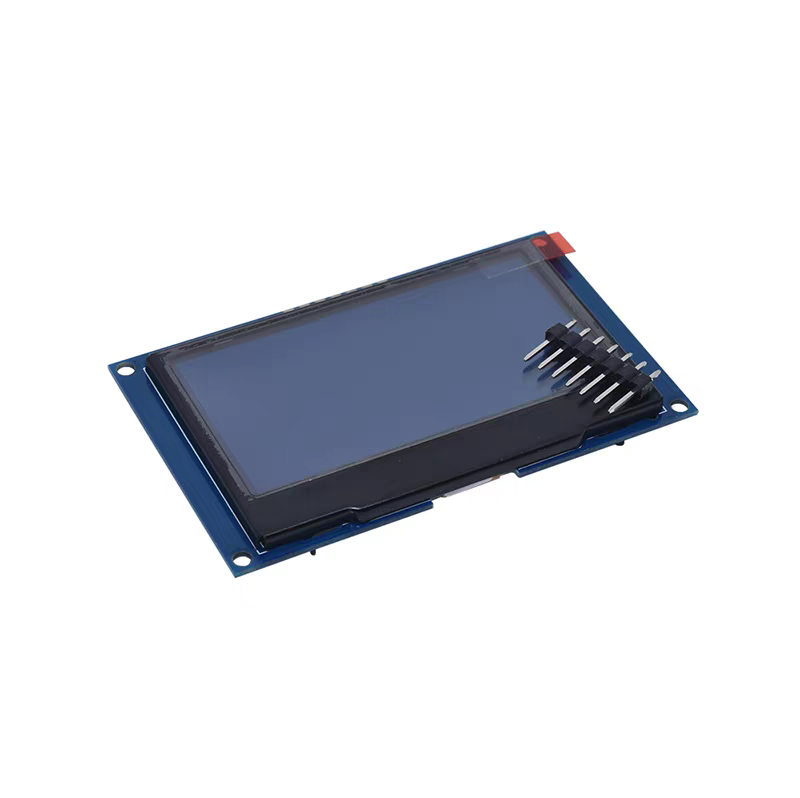

2.42 inch OLED display

Product Specifications:

Product Model: 2.42-inch OLED

Colour : Blue

Physical Size: 71 × 43 × 5 mm

Display Area: 55 × 27.49 mm

Number of Pins: 7 PIN

Driving Voltage: 3.3 – 5V

Connection Method: Pin header connection (plug-in type)

Resolution: 128 × 64 (image shows 125×64, but typically 128×64)

Operating Temperature: -40°C to +70°C

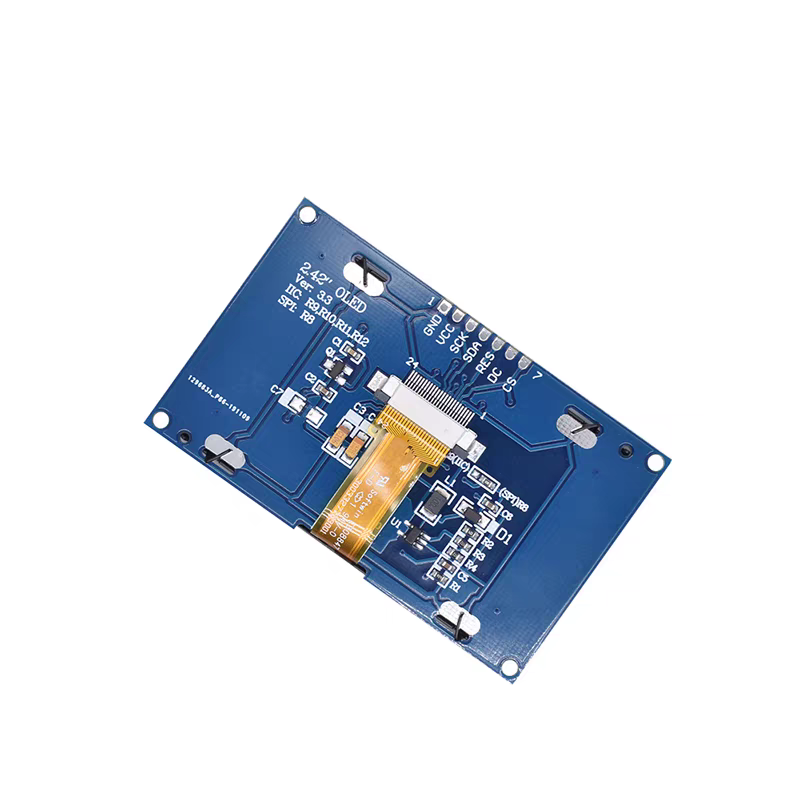

Interface Definition

GND: Power Ground

VCC: Power Positive

SCL: Clock Line

SDA: Data Line

RES: Reset Line

DC: Data / Command

CS: Chip Select
