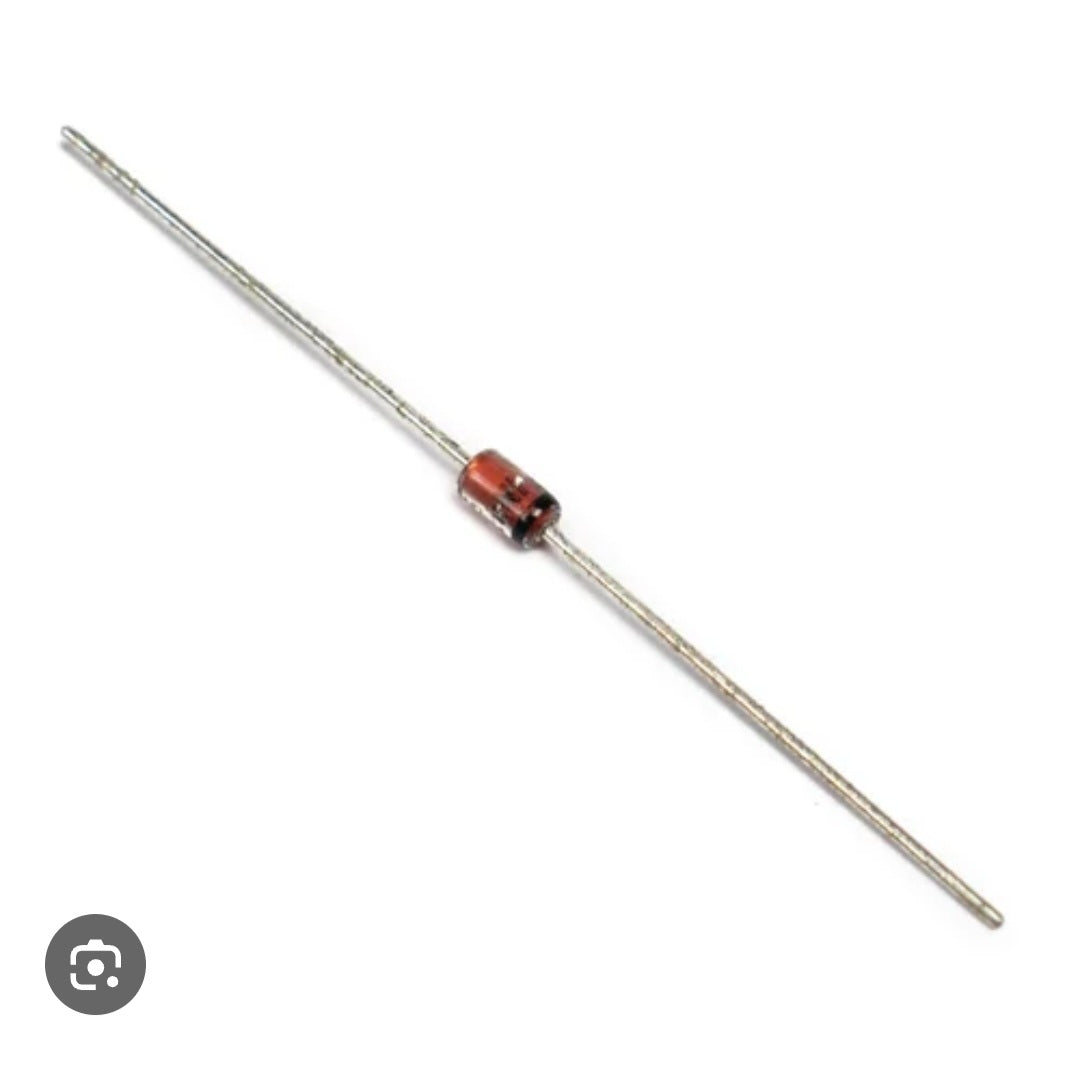

1N4746A 18v 1watt Zener diode

Product Description

This 1N4746 Zener diode is another form of diode which comes in a Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it is very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4746 18V Zener Diode has a nominal voltage of 18V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.

Features:

Silicon Planar Power Zener Diodes

For use in stabilizing and clipping circuits with a high power rating.

The standard Zener voltage tolerance is ±10%.

High reliability

Very sharp reverse characteristics.

Specifications

Diode Number: 1N4746

Voltage Rating: 18V

Power rating: 1W

Number of terminals: 2

Package type: DO-41

Mounting type: Through-hole

Tolerance: ± 5%

Storage Temperature: -65 to 175 degrees C
