12v Submersible DC Water Pump

JT-500 DC 12V Submersible Water Pump – Open Tank Type

Mainly used for car wash pumps, spraying water, washing machines, garden/irrigation, rockery fountains, water circulation showers, and soil-free cultivation systems.

• Can be connected to a car power supply, works with a 12V battery, convenient for mobility.

• This is a submersible pump, not a self-priming pump for dry land. Water temperature should not exceed 40 °C.

• Low noise, less than 35 dB at 10 cm distance.

• Pay attention to the polarity when connecting the power supply, otherwise it will affect the pump head and water flow.

  • Connect the red wire to the positive terminal.

  • Connect the blue wire to the negative terminal.

  • The yellow wire does not need to be connected.

⚠️ Note: Do not run continuously for 24 hours.

Specifications

• Voltage: DC 12V
• Model number : JT-500
• Flow Rate: 600 L/H
• Maximum Lift: 5 m
• Noise Level: ≤ 50 dB
• Motor Type: Brushed motor
• Weight: 150 g
• Operating Water Temperature: -20°C to 60°C
• Operating Humidity: 45% – 90%
• Applicable Water Types: Tap water, groundwater, seawater
• Usage: Fully submersible
• Service Life: ≥ 2000 hours
• No-load Current: ≤ 0.2 A
• Rated Current: 1.2 A

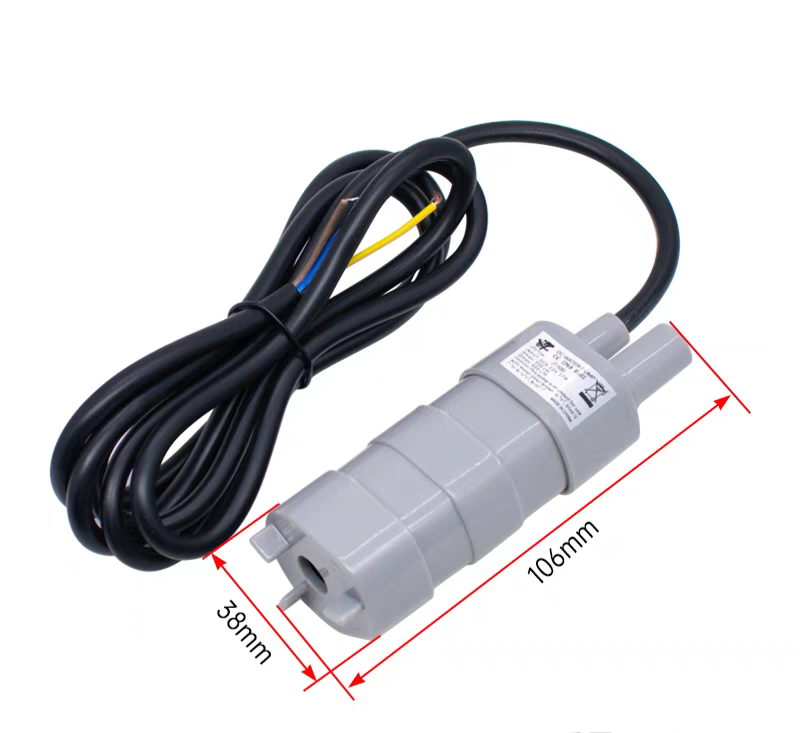

• Dimensions: 106 × 33.2 × 38 mm
• Cable Length:
  • Bare wire: 1.5 m
  • Female connector: 1.5 m
