100uf 100v Capacitor

This is a device that stores electrical energy in an electric field. It is a passive electronic component with two terminals. It is polarized and has a capacitance of 100uf. It is a perfect candidate for breadboarding and perf boarding. It has a voltage rating of 100V.

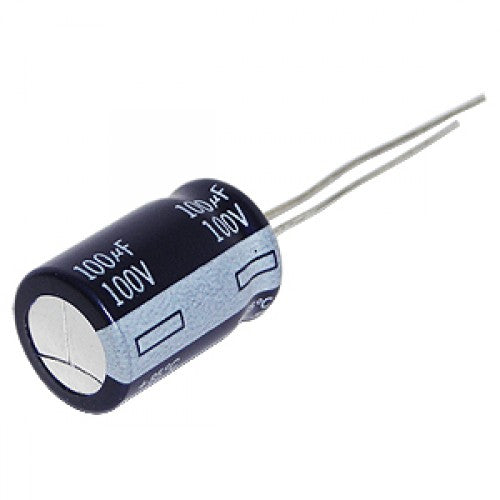

This Electrolytic Capacitor have polarity. Meaning they have a positive and negative pin. The pin which is long is the positive pin and the pin which is short is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.

Technical Specification

• Capacitance Value 100 uF
• Voltage 100VDC
• Tolerance 20%
• Size 12.5 X 15mm
• Type Electrolytic
• Construction Radial
• Leakage Current 4uA
• Lifetime 5000hr
• Ripple Current 460mA
• Minimum Operating Temperature -55°C
• Maximum Operating Temperature 105°C
• Mounting Through Hole
