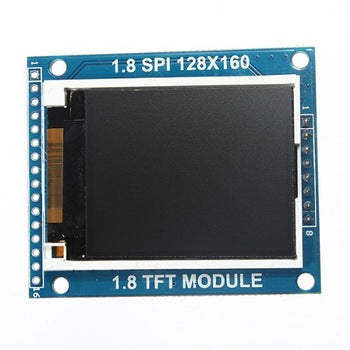

1.8 inch 128*160 RGB TFT display

1.8 inch 128*160 RGB TFT display

Regular price ₦11,700.00 NGN
Regular price Sale price ₦11,700.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

1.8inch full color TFT LCD display screen with 128X160 resolution will provide you good display effect Horizontal or vertical screen can be adjusted Equipped with ST7735 controller chip and support 3.3V power supply The TFT Touch Panel has high contrast, extremely wide viewing angle No backlight needed, the display unit can emit light.


Input Voltage: 5V/3.3V

Resolution: 128X160

Driver IC: ST7735S

Port: 5 IO ports

Size: 5046mm / 1.961.81


Interface Type: Serial Peripheral Interface

Display Color: Full-color

Screen Size: 1.8inch

Resolution: 128 * 160

Pin Number: 8pin

Voltage: 3.3V

Pixel Size: 0.219 * 0.219mm

Dimension: Approx. 35 * 56mm / 1.4 * 2.2inch

Display Area Size: Approx. 28 * 35mm / 1.1 * 1.4inch

Working Temperature: -20-70

Weight: Approx. 19g
