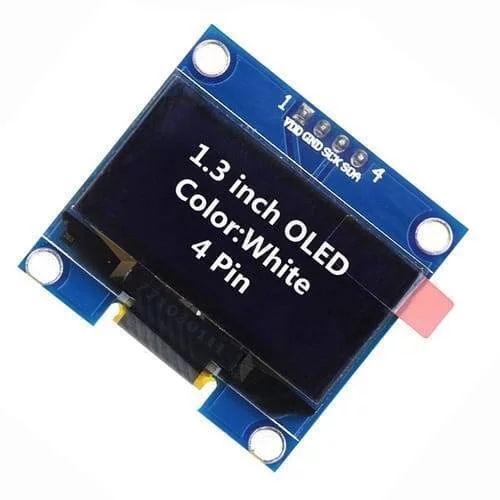

1.3 inch OLED display

1.3 inch OLED display module IIC/SPI compatible with Arduino.

Description

This is an OLED monochrome 128×64 dot matrix display module with I2C Interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, wide viewing angle, wide temperature range, and low power consumption. It is compatible with Arduino. It is easy to use with the help of the SH1106_I2C library for Arduino.

Specification

Resolution: 128*64

Display area: 29.42 x 14.7mm/1.16″*0.58″

Driving voltage: 3.3-5V

Operating temperature: -40 ° to 70 °

Interface type: IIC interfac

Application: Smart watch, MP3, thermometer, instruments, DIY projects, etc

Pin definitions

   1> GND (power ground)

   2> VCC (positive power supply)

   3> SCL (clock line)

   4> SDA (data line)
