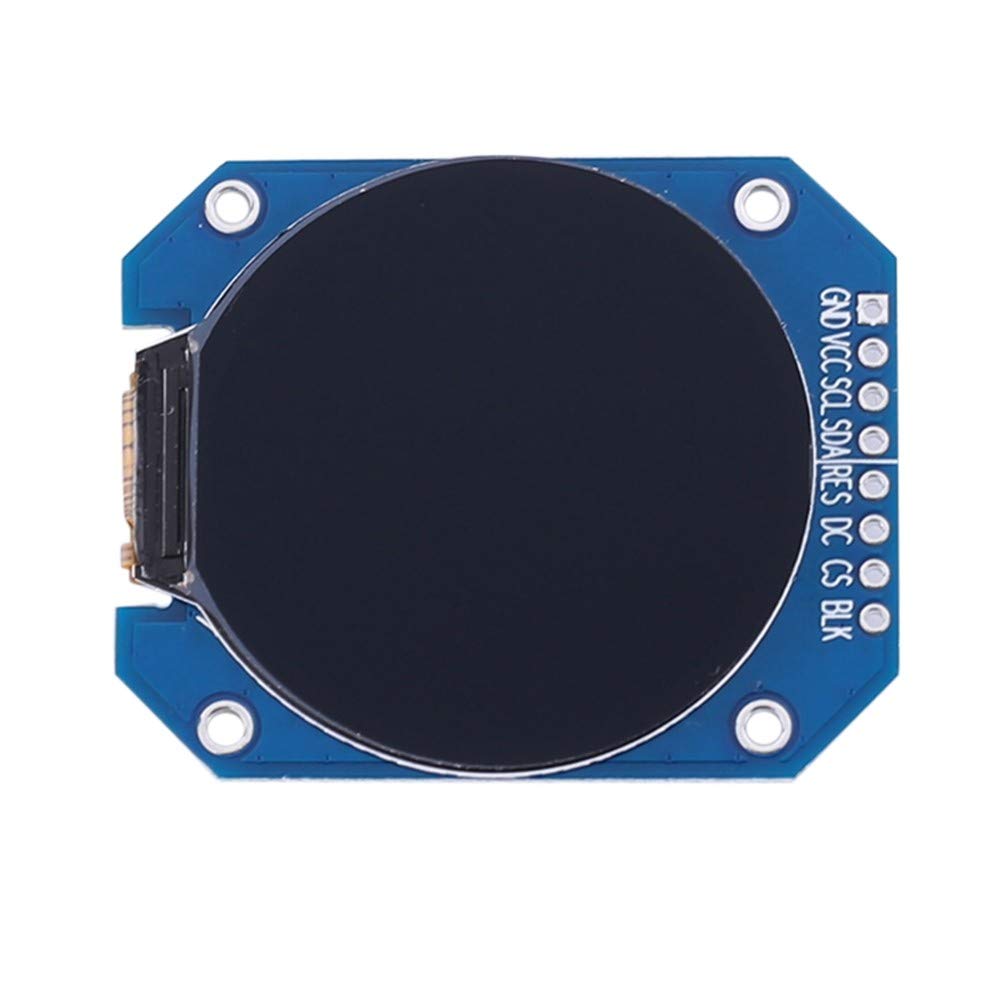

1.28 inch LCD display 240x240 GC9A01 driver HD ips round screen

1.28 inch LCD display 240x240 GC9A01 driver HD ips round screen

Regular price ₦9,750.00 NGN
Regular price Sale price ₦9,750.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

1.Description:



It is a 1.28inch 240*240 IPS LCD Display Screen.
It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.
2.Features:
IPS color display screen
4Pin SPI communication
Adjustable display direction
Full viewing angle display
3.Parameters:
Product Name:1.28inch 240*240 IPS LCD Display Screen
Material:IPS color display screen
Resolution:240*240
Driver Chip:GC9A01
Display Size:1.28inch
Display area:D32.4mm
Panel size:35.638.11.5mm
Interface type:4-Pin SPI
Work voltage:2.8V-3.3V
Pins:2.54mm 8Pin
View:Full viewing angle display
Working Temperature range:-20℃~70℃
Working Humidity Range:5%-95%RH
PCB Size:44365mm
4.Application:
Instrument display
Mobile devices
Wearable display device
Real-time monitoring and display equipment
