Microscale
MAX98357 I2S Audio Amplifier Module
MAX98357 I2S Audio Amplifier Module
Regular price
₦3,800.00 NGN
Regular price
Sale price
₦3,800.00 NGN
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

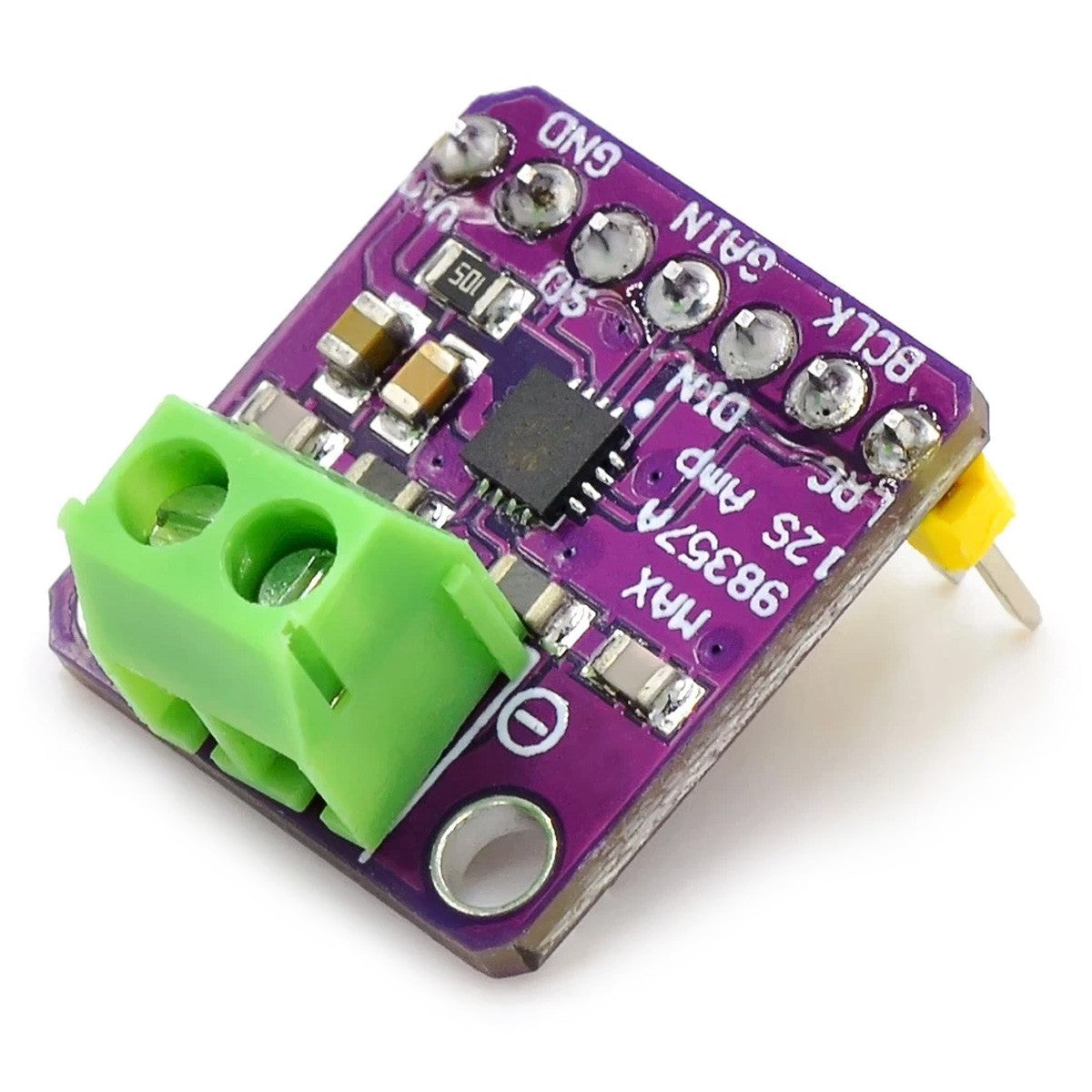

This mono Class D amplifier module with a surprisingly compact form factor - less than 2cm on a side - uses a MAX98357 chip to deliver 3W of power. Its I2S input allows an easy association with a Raspberry Pi or ESP32, allowing for example to design a small portable amplified speaker.
Technical characteristics
Specifications | |
---|---|
Product type | Amplifier board |
Amplification type | Class D |
Amplification chip | MAX98357A |
Input | I2S |
Output | Screw speaker terminals |
Output power | 3W @ 4-8Ω |
Gain | 9dB |
General | |
---|---|
Supply voltage | 2.5--5.5V DC |
Dimensions | 19*18mm |
